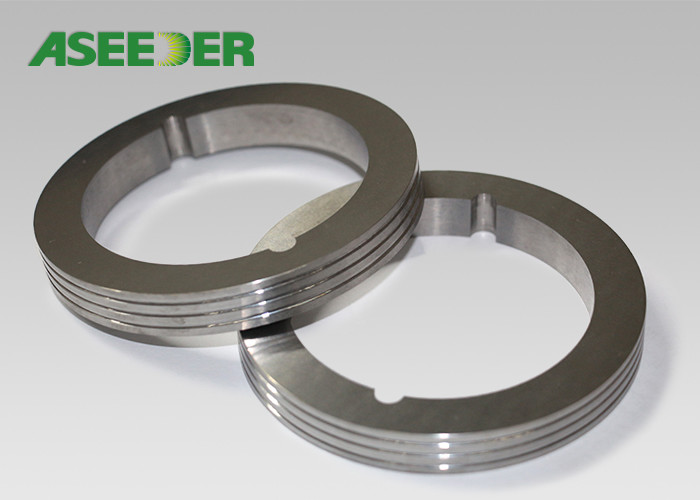

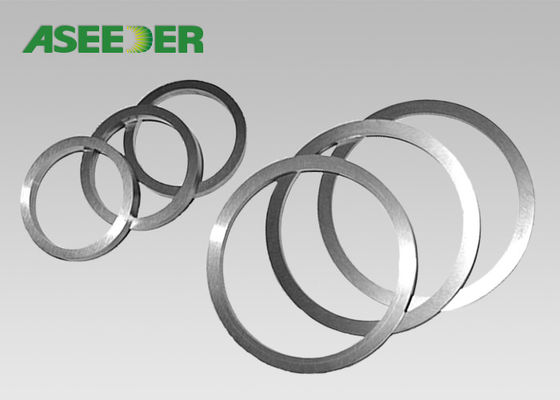

Tungsten Carbide Seal Ring for Water Pump Mechanical Ring Seal

Tungsten Carbide Seal Ring for Water Pump Mechanical Ring Seal

  • Tungsten Carbide Seal Ring for Water Pump Mechanical Ring Seal
  • Tungsten Carbide Seal Ring for Water Pump Mechanical Ring Seal
Tungsten Carbide Seal Ring for Water Pump Mechanical Ring Seal
Product Details:
Place of Origin: CHINA
Brand Name: ASEEDER
Certification: ISO,TDS,API, ASP9100
Model Number: AN-087
Payment & Shipping Terms:
Minimum Order Quantity: 30 pieces
Price: Negotiable
Packaging Details: Standard package or to customer's demand
Delivery Time: around 30 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000pcs per months
Contact Now
Detailed Product Description
Materials: Tungsten Carbide Industry: Per Cusotmer Requirement
Surface: Matt Or Polish Feature: Corrosion Resistance
Keyword: Sealing Ring Name: Corrosion Resistance
High Light:

Water Pump Tungsten Carbide Seal Ring

,

Corrosion Resistant Mechanical Carbide Seal Ring

,

ASP9100 Tungsten Steel Rings

Tungsten Carbide Seal Ring for Water Pump Mechanical Ring Seal





Applications :

We are manufacturing Cemented Tungsten Carbide Wear Parts for difference industry, tungsten carbide is widely used as seal faces with resistant-wearing, high fracture strength, high thermal conductivity, small heat expansion co-efficient. It is the best material to resist heat and fracture in all hard face materials.



Features:

Aseeder Cemented tungsten carbide wear parts have a variety of specifications, processed and made with high quality raw material. It has the characteristics of high temperature resistance, corrosion resistance, abrasion resistance, high precision and so on.



Recommended tungsten carbide grade list

Grade Co
(Wt %)
Density
(g/cm3)
Hardness (HRA) TRS
(≥N/mm²)
ZY11-C 9.0-11.0 14.33-14.53 88.6-90.2 2800
ZY15-C 15.5-16.0 13.84-14.04 85.6-87.2 2800
ZY15X 14.7-15.3 13.85-14.15 ≥89 3000
ZY20 18.7-19.1 13.55-13.75 ≥83.8 2800
ZY06X 5.5-6.5 14.80-15.05 91.5-93.5 2800
ZY08 7.5-8.5 14.65-14.85 ≥89.5 2500
ZY09 8.5-9.5 14.50-14.70 ≥89 2800
ZY10X 9.5-10.5 14.30-14.60 90.5-92.5 3000



SEED Advantage::

  •  High stability, long lifespan circle.
  •  Customized as your requirements.
  •  Approved factory for oil and gas industry TOP10 customers.
  •  With ASP9100 certificate , API certificate, ISO9001:2015
  •  With a Special Thread Processing Workshop



Package :

Each unit will be packed into a plastic cylinder with foam, then put on carton box.

Tungsten Carbide Seal Ring for Water Pump Mechanical Ring Seal 0

Tungsten Carbide Seal Ring for Water Pump Mechanical Ring Seal 1




Major Product Lines

· Wear resistant carbide components via powder metallurgy technique

· Hardfacing (oxy-acetylene spray, PTA, HVOF, etc.) and surface enhancement (phosphating, boronizing, etc.)

· High-precision machining of metals (S.Steel, carbon steel, Inconel 718, etc.)

· Additive manufacture



The products and technologies from Seed (Aseeder) have been widely applied in the fields of oil & gas, chemical engineering, subsea, nuclear power and aerospace industries. Mainly used in harsh operating conditions include severe abrasion, erosion, corrosion, high temperature, high pressure and strong impact. Our major clients are Fortune 500 companies. Seed is the leading export enterprise in China of wear-resistant cemented carbide products and the related high-precision machining techniques.



Representative Products

Chokes and valves trim parts
Pumps seal rings
Labyrinth product series
Drill bit nozzles, inserts, cutters
MWD parts, downhole tool components
TC bearings, PDC thrust bearings
Downhole flow control components
Artificial lift pumps components
Super hard product series
Innovative hardfacing solutions

Tungsten Carbide Seal Ring for Water Pump Mechanical Ring Seal 2

Tungsten Carbide Seal Ring for Water Pump Mechanical Ring Seal 3
