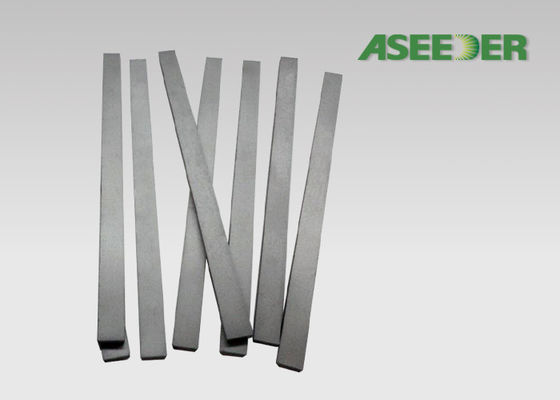

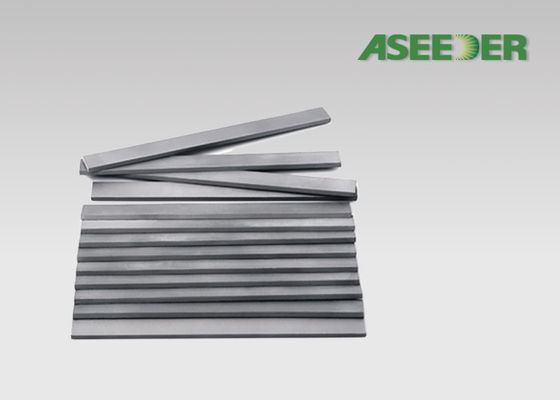

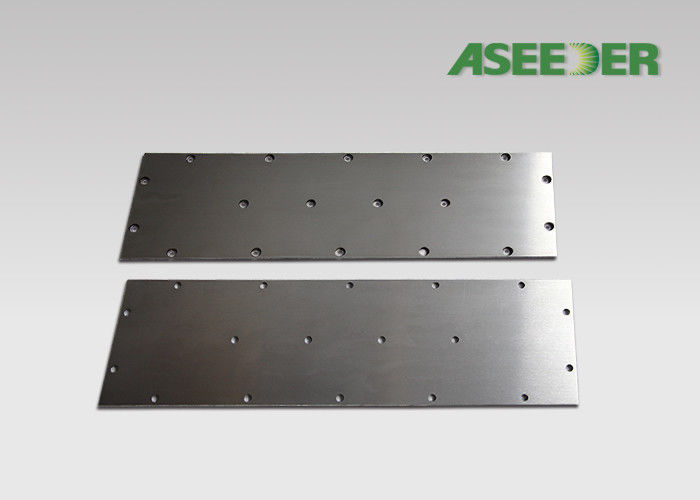

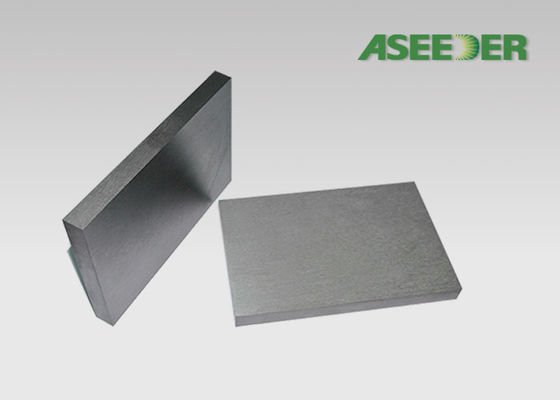

ZY04X Tungsten Carbide Plates 92.8HRA For Mould Processing

ZY04X Tungsten Carbide Plates 92.8HRA For Mould Processing

  • ZY04X Tungsten Carbide Plates 92.8HRA For Mould Processing
  • ZY04X Tungsten Carbide Plates 92.8HRA For Mould Processing
  • ZY04X Tungsten Carbide Plates 92.8HRA For Mould Processing
  • ZY04X Tungsten Carbide Plates 92.8HRA For Mould Processing
ZY04X Tungsten Carbide Plates 92.8HRA For Mould Processing
Product Details:
Place of Origin: China
Brand Name: Aseeder
Certification: ISO9001,API
Model Number: Plates-001
Payment & Shipping Terms:
Minimum Order Quantity: 5pcs
Price: USD 5~25 Pcs
Packaging Details: Good packing with Carton box
Payment Terms: D/A, D/P, L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000 pcs / week
Contact Now
Detailed Product Description
Material: Tungstun Carbide Grade: Cobalt Or Nickel
Size: Any Size Shape: Customized
Color: Metal Color Level: AAA+
High Light:

ZY04X Tungsten Carbide Plates

,

Mould Processing Tungsten Carbide Plates

,

Carbide Plates 92.8HRA

High Quality Tungsten Carbide Plates For Processing Moulds





Tungsten Carbide Plates Features:

1. Use 100% tungsten carbide raw material

2. Stable chemical properties

3. Excellent performance and good wear / corrosion resistance

4. HIP sintering, good compactness

5. Blanks, high machining accuracy / precision

6. OEM customized sizes available

7. Factory’s offer

8. Strict products quality inspection

9. With API certificate, ISO9001:2015



ZY04X Tungsten Carbide Plates 92.8HRA For Mould Processing 0



Recommended tungsten carbide grade list

Grade Co/Ni
(Wt %)
Density
(g/cm3)
ISO 3369
Hardness (HRA)
ISO 3738:1
TRS
(≥N/mm²)

ISO 3327

Grain Size

(μm)
ISO 4499:2

ZY04X 3.5-4.5 15.00-15.20 92.8-93.8 ≥2500 0.8-1.0
ZY05X 4.5-5.5 14.80-15.05 ≥93.5 ≥2800 ≤0.8
ZY06X 5.5-6.5 14.80-15.05 92.5-93.8 ≥3000 ≤0.8
ZY06-G 5.5-6.5 14.89-15.05 91.3-92.3 ≥3000 0.8-1.0
ZY08 7.5-8.5 14.65-14.85 90.0-91.5 ≥3000 1.2-1.6
ZY10X 9.5-10.5 14.30-14.60 90.5-92.5 ≥3000 ≤0.8
ZY12 11.0-12.5 14.15-14.45 88.5-90.0 ≥3000 0.8-1.2
ZY15X 15.0-16.0 13.85-14.15 ≥89.0 ≥3000 ≤0.8
ZY20 18.0-19.0 13.55-13.75 ≥83.8 ≥2800 1.2-1.6
ZY25 24.0-26.0 12.95-13.15 ≥81.5 ≥2800 3.0-5.0
Ni06X 5.5-6.5 14.85-15.05 92.0-93.5 ≥2800 ≤0.8
Ni10-H 10.0-11.0 14.40-14.70 89-90.5 ≥2800 0.8-1.2
Ni15-G 14.3-15.3 13.90-14.10 ≥82.0 ≥2800 3.2-4.0



ZY04X Tungsten Carbide Plates 92.8HRA For Mould Processing 1ZY04X Tungsten Carbide Plates 92.8HRA For Mould Processing 2



Seed Technologies Corp., LTD., located in Zhuzhou (China), is a high-tech developer, manufacturer, and distributor of superior wear resistant parts, tool assembly and equipment for Oil and gas, Areospace, Valve and Pumps industry.



ZY04X Tungsten Carbide Plates 92.8HRA For Mould Processing 3ZY04X Tungsten Carbide Plates 92.8HRA For Mould Processing 4ZY04X Tungsten Carbide Plates 92.8HRA For Mould Processing 5ZY04X Tungsten Carbide Plates 92.8HRA For Mould Processing 6



Aseeder Corporation was invested by Seed as a Houston based company dedicated for sales and customer support in north America market.

The products and technologies from Seed (Aseeder) have been widely applied in the fields of oil & gas, chemical engineering, subsea, nuclear power and aerospace industries. Mainly used in harsh operating conditions include severe abrasion, erosion, corrosion, high temperature, high pressure and strong impact.Our major clients are Fortune 500 companies. Seed is the leading export enterprise in China of wear-resistant cemented carbide products and the related high-precision machining techniques.



ZY04X Tungsten Carbide Plates 92.8HRA For Mould Processing 7
