3/4"-1 Api Choke Stem With Hardness 90 Fast Delivery

3/4"-1 Api Choke Stem With Hardness 90 Fast Delivery

  • 3/4"-1 Api Choke Stem With Hardness 90 Fast Delivery
  • 3/4"-1 Api Choke Stem With Hardness 90 Fast Delivery
  • 3/4"-1 Api Choke Stem With Hardness 90 Fast Delivery
3/4"-1 Api Choke Stem With Hardness 90 Fast Delivery
Product Details:
Place of Origin: CHINA
Brand Name: ASEEDER
Certification: API, ISO
Model Number: Choke Stem-639
Payment & Shipping Terms:
Minimum Order Quantity: 5 pieces
Price: Negotation
Packaging Details: Foam Paper Packing+Carton
Delivery Time: 2~3 weeks depend on quantity
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 15tons per years
Contact Now
Detailed Product Description
Hardfacing: Available Application: Fllow Control
OEM: Support Material: Steel 304/410 + Carbide YG10
High Light:

Api Choke Stem

,

Hardness 90 Choke Stem

,

Tungsten Carbide Choke Stem

FAST DELIVERY 3/4"-1 API CHOKE STEM WITH HARDNESS 90

Features:

1. Tungsten carbide is embedded into choke bean in full length
2. Removeable Choke bean


We have standard choke stem & bean support fast delivery, in case standard parts not meet your requirment, OEM service is also supported, welcome to contact us for details, our main customers are including Schlumberger, Baker hughes, Halliburton..etc.

Process of the orders:
1. Aterial ---outer material stainless steel, tungsten carbide is embedded into choke bean in full length
2. Predium ----oil gas ,water and sand-
3. Per your drawing---customizable
4. Size -------4/64"- 134/64"



  • Tungsten Carbide Choke Stem is widely used on a choke valve in oil gas industry or other energy industry
  • Tungsten Carbide stem are specifically designed to resist corrosion, abrasion, wear, fretting, sliding wear and impact both onshore offshore and surface subsea applications.
  • Our Tungsten Carbide choke stem includes Both Tungsten Carbide Coating stem and Integral Tungsten Carbide seat inlaying as optional.Our complete line of high-performance tungsten carbide based anti-wear hard facing and integral products will help you to find the best solution for effectively eliminating your abrasion problems.

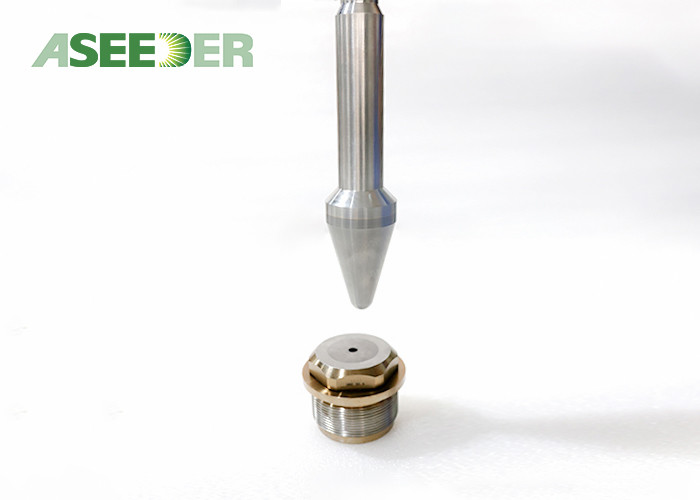

3/4"-1 Api Choke Stem With Hardness 90 Fast Delivery 0

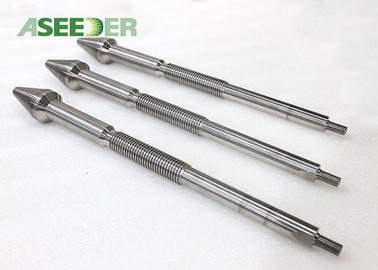

3/4"-1 Api Choke Stem With Hardness 90 Fast Delivery 1



Tungsten Carbide Materials Grade As Below:


Aseeder Grade Co
(Wt %)
Density
(g/cm3)
Hardness (HRA) TRS
(≥N/mm²)
ZY11-C 9.0-11.0 14.33-14.53 88.6-90.2 2800
ZY15-C 15.5-16.0 13.84-14.04 85.6-87.2 2800
ZY15X 14.7-15.3 13.85-14.15 ≥89 3000
ZY20 18.7-19.1 13.55-13.75 ≥83.8 2800
ZY06X 5.5-6.5 14.80-15.05 91.5-93.5 2800
ZY08 7.5-8.5 14.65-14.85 ≥89.5 2500
ZY09 8.5-9.5 14.50-14.70 ≥89 2800
ZY10X 9.5-10.5 14.30-14.60 90.5-92.5 3000



Features:

1. Use 100% tungsten carbide raw material
2. Stable chemical properties
3. Excellent performance and good wear / corrosion resistance
4. HIP sintering, good compactness
5. Blanks, high machining accuracy / precision
6. OEM customized sizes available
7. Factory’s offer
8. Strict products quality inspection

9. other shaped stem & other valve parts also availalbe

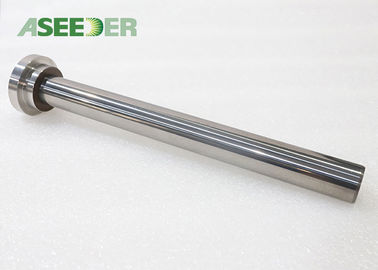

3/4"-1 Api Choke Stem With Hardness 90 Fast Delivery 2

3/4"-1 Api Choke Stem With Hardness 90 Fast Delivery 3

3/4"-1 Api Choke Stem With Hardness 90 Fast Delivery 4

3/4"-1 Api Choke Stem With Hardness 90 Fast Delivery 5
