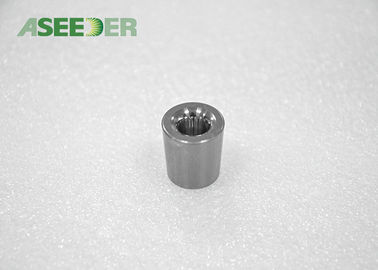

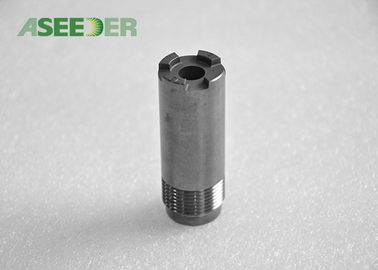

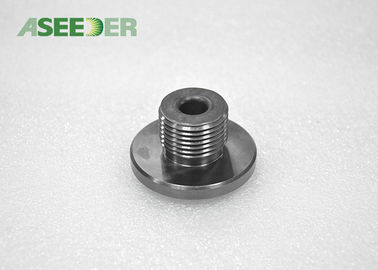

Plum Blossom Type Tungsten Carbide Nozzle , Wet Blasting Nozzle High Wear Resistance

Plum Blossom Type Tungsten Carbide Nozzle , Wet Blasting Nozzle High Wear Resistance

  • Plum Blossom Type Tungsten Carbide Nozzle , Wet Blasting Nozzle High Wear Resistance
  • Plum Blossom Type Tungsten Carbide Nozzle , Wet Blasting Nozzle High Wear Resistance
  • Plum Blossom Type Tungsten Carbide Nozzle , Wet Blasting Nozzle High Wear Resistance
  • Plum Blossom Type Tungsten Carbide Nozzle , Wet Blasting Nozzle High Wear Resistance
Plum Blossom Type Tungsten Carbide Nozzle , Wet Blasting Nozzle High Wear Resistance
Product Details:
Place of Origin: CHINA
Brand Name: ASEEDER
Certification: ISO,TDS,API, ASP9100
Model Number: AN-16
Payment & Shipping Terms:
Minimum Order Quantity: 20 pieces for Standard package customer's demand
Price: Negotiable
Packaging Details: Standard package or to customer's demand
Delivery Time: 30 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000pcs per months
Contact Now
Detailed Product Description
Materials: Tungsten Carbide Industry: Oil, Gas Industry
Application: Wet Blasting Nozzle Type: Internal Hexagonal Type
Feature: High Wear Resistance Product Name: High Precision Wet Blasting Nozzle / Tungsten Carbide Nozzles Of Plum Blossom Type
High Light:

oil spray nozzle

,

wet blasting nozzle

,

Wet Blasting Tungsten Carbide Nozzle

High Precision Wet Blasting Nozzle / tungsten carbide nozzles of Plum blossom type



Description :

Tungsten carbide oil spray nozzles are the most commonly used nozzles in the Oil & Gas industry. They are tough and are best suited for use in harsh work site conditions. These oil spray nozzles are professionally manufactured by one of the highest respected companies providing unsurpassed wear resistance in abrasion.



Features:

Aseeder hard wearing tungsten carbide nozzles have a variety of specifications, processed and made with high quality raw material. It has the characteristics of high temperature resistance, corrosion resistance, abrasion resistance, high precision and so on.



Plum Blossom Type Tungsten Carbide Nozzle , Wet Blasting Nozzle High Wear Resistance 0

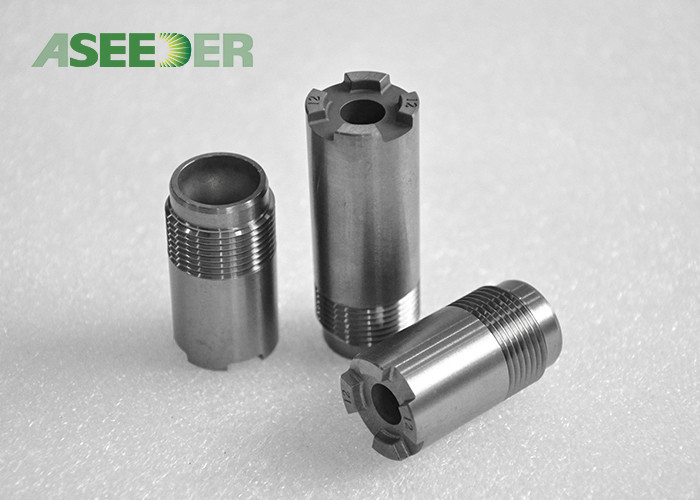

High precision oil spray nozzle are availabe in these styles and sizes:

  • plum blossom type thread nozzles

  • internal hexagonal thread nozzles

  • outer hexagonal thread nozzles

  • cross groove thread nozzles

  • Y type(three grooves) thread nozzles

  • gear wheel drill bitt nozzles and press fracturing nozzles.



Recommended tungsten carbide grade list

Grade Co
(Wt %)
Density
(g/cm3)
Hardness (HRA) TRS
(≥N/mm²)
ZY11-C 9.0-11.0 14.33-14.53 88.6-90.2 2800
ZY15-C 15.5-16.0 13.84-14.04 85.6-87.2 2800
ZY15X 14.7-15.3 13.85-14.15 ≥89 3000
ZY20 18.7-19.1 13.55-13.75 ≥83.8 2800
ZY06X 5.5-6.5 14.80-15.05 91.5-93.5 2800
ZY08 7.5-8.5 14.65-14.85 ≥89.5 2500
ZY09 8.5-9.5 14.50-14.70 ≥89 2800
ZY10X 9.5-10.5 14.30-14.60 90.5-92.5 3000



Advantage::

  •  High stability, long lifespan circle.
  •  Customized as your requirements.
  •  Approved factory for oil and natural gas industry TOP10 customers.
  •  With ASP9100 certificate , API certificate, ISO9001:2015
  •  With a Special Thread Processing Workshop



Package :

Each unit will be packed into a plastic cylinder with foam, then put on carton box.






Major Product Lines

· Wear resistant carbide components via powder metallurgy technique

· Hardfacing (oxy-acetylene spray, PTA, HVOF, etc.) and surface enhancement (phosphating, boronizing, etc.)

· High-precision machining of metals (S.Steel, carbon steel, Inconel 718, etc.)

· Additive manufacture



The products and technologies from Seed (Aseeder) have been widely applied in the fields of oil & gas, chemical engineering, subsea, nuclear power and aerospace industries. Mainly used in harsh operating conditions include severe abrasion, erosion, corrosion, high temperature, high pressure and strong impact. Our major clients are Fortune 500 companies. Seed is the leading export enterprise in China of wear-resistant cemented carbide products and the related high-precision machining techniques.



Representative Products

Chokes and valves trim parts
Pumps seal rings
Labyrinth product series
Drill bit nozzles, inserts, cutters
MWD parts, downhole tool components
TC bearings, PDC thrust bearings
Downhole flow control components
Artificial lift pumps components
Super hard product series
Innovative hardfacing solutions
