| Place of Origin: | CHINA |
| Brand Name: | ASEEDER |
| Certification: | ISO,TDS,API, ASP9100 |
| Model Number: | AN-032 |
| Minimum Order Quantity: | 20 pieces for Standard package customer's demand |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard package or to customer's demand |
| Delivery Time: | 30 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 5000pcs per months |
| Materials: | Tungsten Carbide | Industry: | Petroleum,Chemical And Mechanic Industry |
|---|---|---|---|
| Application: | Drill Bit Nozzle | Type: | High Density |
| Packing: | Plastic Cylinder | Name: | High Density Drill Bit Nozzle Cemented Tungsten Carbide Nozzle For Cone Roller Bits |
| High Light: | cemented carbide nozzle,oil drilling bit nozzle,Cemented Tungsten Carbide Nozzle |
||

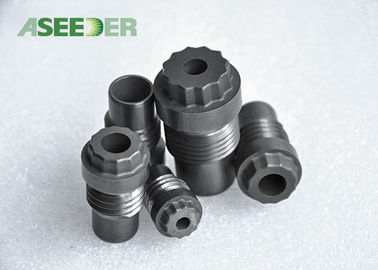

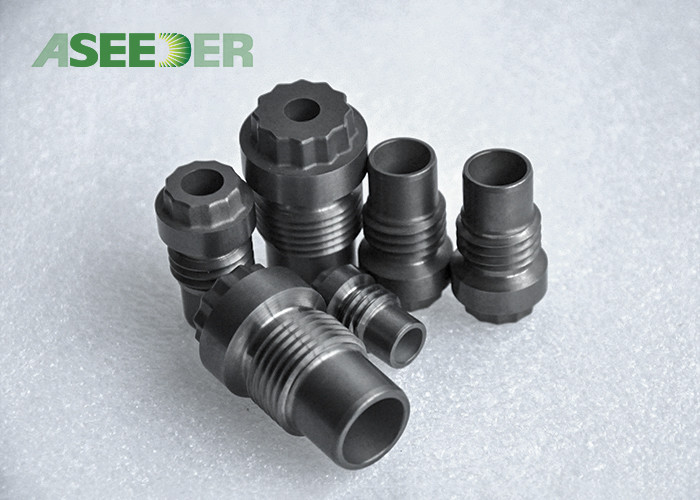

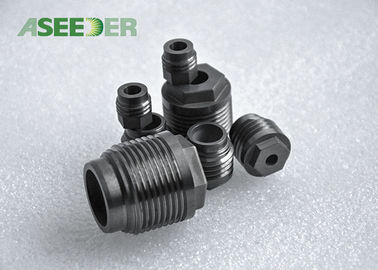

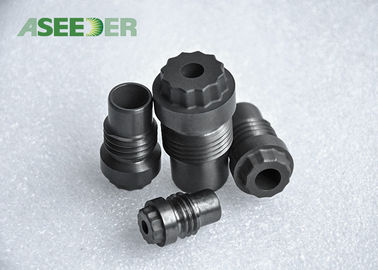

High density drill bit nozzle cemented tungsten carbide nozzle for cone roller bits
Tungsten carbide nozzle is mainly used in chemical industry, food, machinery, metallurgy, architecture and other industries for pulverizing, derusting, cleaning, atomization, etc. Aseeder drill bit nozzles are mainly for Oil Drilling Tools.
Features:
Aseeder drill bit nozzle have a variety of specifications, processed and made with high quality raw material. It has the characteristics of high temperature resistance, corrosion resistance, abrasion resistance, high precision and so on.
Benefit
High efficiency for cooling, cleaning and cuttings evacuation, extend the drilling bit lift.
When tightening nozzle reduced pop-up force.
Recommended tungsten carbide grade list
| Grade | Co (Wt %) |
Density (g/cm3) |
Hardness (HRA) | TRS (≥N/mm²) |
| ZY11-C | 9.0-11.0 | 14.33-14.53 | 88.6-90.2 | 2800 |
| ZY15-C | 15.5-16.0 | 13.84-14.04 | 85.6-87.2 | 2800 |
| ZY15X | 14.7-15.3 | 13.85-14.15 | ≥89 | 3000 |
| ZY20 | 18.7-19.1 | 13.55-13.75 | ≥83.8 | 2800 |
| ZY06X | 5.5-6.5 | 14.80-15.05 | 91.5-93.5 | 2800 |
| ZY08 | 7.5-8.5 | 14.65-14.85 | ≥89.5 | 2500 |
| ZY09 | 8.5-9.5 | 14.50-14.70 | ≥89 | 2800 |
| ZY10X | 9.5-10.5 | 14.30-14.60 | 90.5-92.5 | 3000 |
Advantage::
Package :
Each unit will be packed into a plastic cylinder with foam, then put on carton box.
Major Product Lines
· Wear resistant carbide components via powder metallurgy technique
· Hardfacing (oxy-acetylene spray, PTA, HVOF, etc.) and surface enhancement (phosphating, boronizing, etc.)
· High-precision machining of metals (S.Steel, carbon steel, Inconel 718, etc.)
· Additive manufacture
The products and technologies from Seed (Aseeder) have been widely applied in the fields of oil & gas, chemical engineering, subsea, nuclear power and aerospace industries. Mainly used in harsh operating conditions include severe abrasion, erosion, corrosion, high temperature, high pressure and strong impact. Our major clients are Fortune 500 companies. Seed is the leading export enterprise in China of wear-resistant cemented carbide products and the related high-precision machining techniques.
