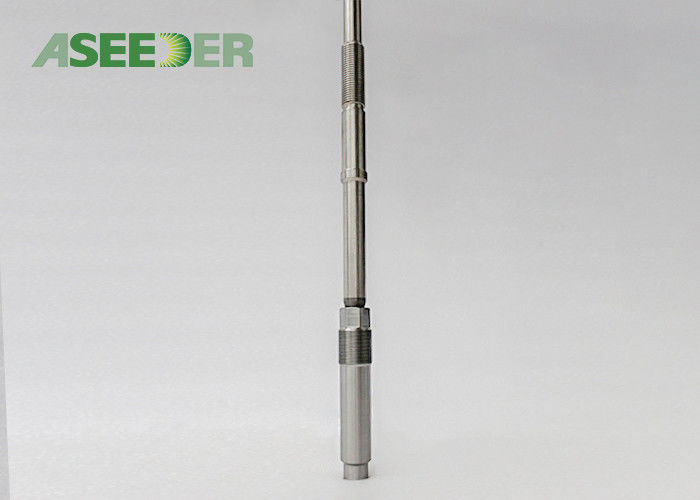

High Precision Dispense Valve Trim And Assembly Parts Tungsten Carbide Outlet Check

High Precision Dispense Valve Trim And Assembly Parts Tungsten Carbide Outlet Check

  • High Precision Dispense Valve Trim And Assembly Parts Tungsten Carbide Outlet Check
  • High Precision Dispense Valve Trim And Assembly Parts Tungsten Carbide Outlet Check
  • High Precision Dispense Valve Trim And Assembly Parts Tungsten Carbide Outlet Check
  • High Precision Dispense Valve Trim And Assembly Parts Tungsten Carbide Outlet Check
High Precision Dispense Valve Trim And Assembly Parts Tungsten Carbide Outlet Check
Product Details:
Place of Origin: CHINA
Brand Name: ASEEDER
Certification: ISO,API
Model Number: Choke Stem Assembly-0223
Payment & Shipping Terms:
Minimum Order Quantity: 10 pieces
Price: Negotation
Packaging Details: Aseeder standard packing or Customized packing
Delivery Time: 5-8 weeks depend on quantity
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 15tons per years
Contact Now
Detailed Product Description
Application: Flow Control OEM: Accept
Material: Tungsten Carbide + SS410 Forged Steel Bodies: Alloy And 410 SS
Product Specification Level: PSL1 ~ PSL4 Performance Requirement: PR1, PR2
High Light:

valve stem assembly

,

oscillating valve assembly

High precision dispense valves assemblies tungsten carbide outlet check



Features:

1. Tungsten carbide is embedded into choke bean in full length
2. Removeable Choke bean


Process of the orders:
1. Material ---outer material stainless steel, tungsten carbide is embedded into choke bean in full length
2. Medium ----oil gas ,water and sand-
3. Per your drawing---customizable
4. Size -------4/64"- 134/64"

  • Tungsten Carbide Choke Stem is widely used on a choke valve in oil gas industry or other energy industry
  • Tungsten Carbide stem are specifically designed to resist corrosion, abrasion, wear, fretting, sliding wear and impact both onshore offshore and surface subsea applications.
  • Our Tungsten Carbide choke stem includes Both Tungsten Carbide Coating stem and Integral Tungsten Carbide seat inlaying as optional. Our complete line of high-performance tungsten carbide based anti-wear hard facing and integral products will help you to find the best solution for effectively eliminating your abrasion problems.



High Precision Dispense Valve Trim And Assembly Parts Tungsten Carbide Outlet Check 0



Tungsten Carbide Materials Grade As Below:


Aseeder Grade Co
(Wt %)
Density
(g/cm3)
Hardness (HRA) TRS
(≥N/mm²)
ZY11-C 9.0-11.0 14.33-14.53 88.6-90.2 2800
ZY15-C 15.5-16.0 13.84-14.04 85.6-87.2 2800
ZY15X 14.7-15.3 13.85-14.15 ≥89 3000
ZY20 18.7-19.1 13.55-13.75 ≥83.8 2800
ZY06X 5.5-6.5 14.80-15.05 91.5-93.5 2800
ZY08 7.5-8.5 14.65-14.85 ≥89.5 2500
ZY09 8.5-9.5 14.50-14.70 ≥89 2800
ZY10X 9.5-10.5 14.30-14.60 90.5-92.5 3000


Features:
1. Use 100% tungsten carbide raw material
2. Stable chemical properties
3. Excellent performance and good wear / corrosion resistance
4. HIP sintering, good compactness
5. Blanks, high machining accuracy / precision
6. OEM customized sizes available
7. Factory’s offer
8. Strict products quality inspection



High Precision Dispense Valve Trim And Assembly Parts Tungsten Carbide Outlet Check 1
