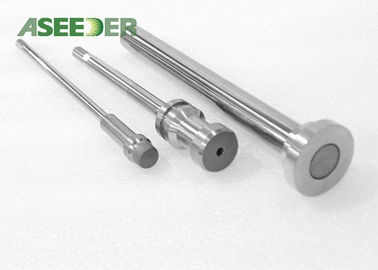

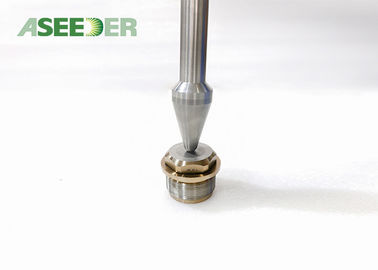

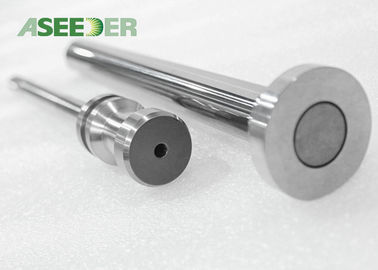

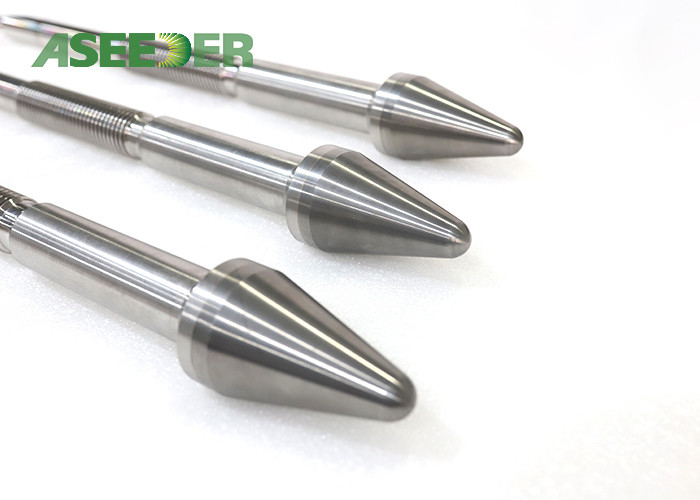

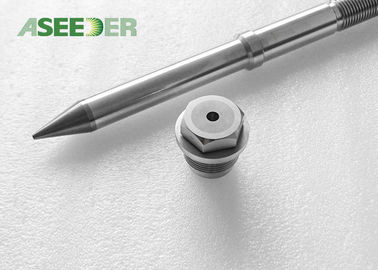

Flow Control Choke Valve Stem And Seat According To Drawings ISO Compliant

Flow Control Choke Valve Stem And Seat According To Drawings ISO Compliant

  • Flow Control Choke Valve Stem And Seat According To Drawings ISO Compliant
  • Flow Control Choke Valve Stem And Seat According To Drawings ISO Compliant
  • Flow Control Choke Valve Stem And Seat According To Drawings ISO Compliant
  • Flow Control Choke Valve Stem And Seat According To Drawings ISO Compliant
  • Flow Control Choke Valve Stem And Seat According To Drawings ISO Compliant
Flow Control Choke Valve Stem And Seat According To Drawings ISO Compliant
Product Details:
Place of Origin: CHINA
Brand Name: ASEEDER
Certification: ISO,GE,API
Model Number: Choke beans-0238
Payment & Shipping Terms:
Minimum Order Quantity: 20 pieces
Price: Nogetation
Packaging Details: Aseeder standard packing or customized packing
Delivery Time: 15-20 workdays
Payment Terms: L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 5000 pcs per month
Contact Now
Detailed Product Description
Medium: Oil And Gas Accompanied With Sour Gas Or / And Sand Application: Flow Control
Material: Tungsten Carbide +Ss410 Key Word: Choke Stem And Seat
Transport Package: Foam Paper Packing+Carton Box + Wooden Case Rated Working Pressure: 5,000psi ~ 20,000psi
High Light:

choke valve stem

,

api valve parts

Customized tunsgten carbide choke valve stem and seat according to drawings



1. Tungsten carbide tip in conjunction with stainless steel stem provides optimum wear resistance in erosive conditions.
2. Carbide wear parts for oil and gas industry, wellhead assembly (eg. Christmas tree, multi­stage choke manifold)
3. Customized tunsgten carbide choke valve stem and seat according to drawings.



Hardened alloy Steel Stems and Seats are widely used in Adjustable Needle & Positive Choke assemblies. Stainless Steel or stainless steel with Tungsten Carbide tips for Abrasive and or Sours Gas Service are available on request. Positive Choke assemblies are furnished less flow bean and may be converted to Adjustable Choke assemblies by replacing the blanking cap assembly and flow bean with the appropriate adjustable bonnet assembly and seat.



Product Parameters

TYPE Dimension (mm) Material
Recommended
D d1 d L α°
Valve Core 52-80 40-70 10-40 75-120 10-45 Tungsten+Cobalt
TYPE Dimension (mm)

Material

Recommended

D d L
Valve Seat 75-100 55-70 20-80 Tungsten+Cobalt



Flow Control Choke Valve Stem And Seat According To Drawings ISO Compliant 0



.

Flow Control Choke Valve Stem And Seat According To Drawings ISO Compliant 1

1. Size : Usually according to customer's requirement
2. High precision
3. ISO



Tungsten Carbide Materials Grade As Below:


Aseeder Grade Co
(Wt %)
Density
(g/cm3)
Hardness (HRA) TRS
(≥N/mm²)
ZY11-C 9.0-11.0 14.33-14.53 88.6-90.2 2800
ZY15-C 15.5-16.0 13.84-14.04 85.6-87.2 2800
ZY15X 14.7-15.3 13.85-14.15 ≥89 3000
ZY20 18.7-19.1 13.55-13.75 ≥83.8 2800
ZY06X 5.5-6.5 14.80-15.05 91.5-93.5 2800
ZY08 7.5-8.5 14.65-14.85 ≥89.5 2500
ZY09 8.5-9.5 14.50-14.70 ≥89 2800
ZY10X 9.5-10.5 14.30-14.60 90.5-92.5 3000



Features:

1. Use 100% tungsten carbide raw material
2. Stable chemical properties
3. Excellent performance and good wear / corrosion resistance
4. HIP sintering, good compactness
5. Blanks, high machining accuracy / precision
6. OEM customized sizes available
7. Factory’s offer
8. Strict products quality inspection



PACKING WAY :
1.Packaging way: Foam paper + carton box /wooden case
2.Shipping way : By DHL,UPS,Fedex ,TNT express , By air , By sea

OUR SERVICE
1. Customized material grade and production according to customer's requirement
2. Low MOQ
3. Free sample availble
4. Professional international transportation system to make sure high cost-effective ,safety service.



FAQ:

How to get effective reply from us ?
1. Have ready drawings , please kindly send us the drawings for quotation .
2. Inform us the required material grade . If you have no ideal , inform us the usage or working condition of the parts .
3. Order quantity
