Customized Tungsten Carbide Nozzle Hexagon Carbide Nozzle For Petroleum

Customized Tungsten Carbide Nozzle Hexagon Carbide Nozzle For Petroleum

  • Customized Tungsten Carbide Nozzle Hexagon Carbide Nozzle For Petroleum
  • Customized Tungsten Carbide Nozzle Hexagon Carbide Nozzle For Petroleum
  • Customized Tungsten Carbide Nozzle Hexagon Carbide Nozzle For Petroleum
  • Customized Tungsten Carbide Nozzle Hexagon Carbide Nozzle For Petroleum
Customized Tungsten Carbide Nozzle Hexagon Carbide Nozzle For Petroleum
Product Details:
Place of Origin: CHINA
Brand Name: ASEEDER
Certification: ISO,TDS,API, ASP9100
Model Number: AN-054
Payment & Shipping Terms:
Minimum Order Quantity: 20 pieces for Standard package customer's demand
Price: Negotiable
Packaging Details: Standard package or to customer's demand
Delivery Time: 30 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000pcs per months
Contact Now
Detailed Product Description
Materials: TUNGSTEN CARBIDE Industry: Petroleum
Application: Pdc Drill Bits Nozzle Type: Inner Hexagon
Certificate: API Name: Inner Hexagon Carbide Nozzle Customized Tungsten Carbide Nozzle For Petroleum
High Light:

tungsten carbide spray nozzle

,

oil drilling bit nozzle

,

Petroleum Hexagon Carbide Nozzle

Inner hexagon carbide nozzle customized tungsten carbide nozzle for petroleum



Applications :

Aseeder Cemented tungsten carbide spary nozzle of oil field are available in a wide range of styles and size combinations for Petroleum industry.



Features:

Aseeder Cemented tungsten carbide spary nozzle of oil field have a variety of specifications, processed and made with high quality raw material. It has the characteristics of high temperature resistance, corrosion resistance, abrasion resistance, high precision and so on.

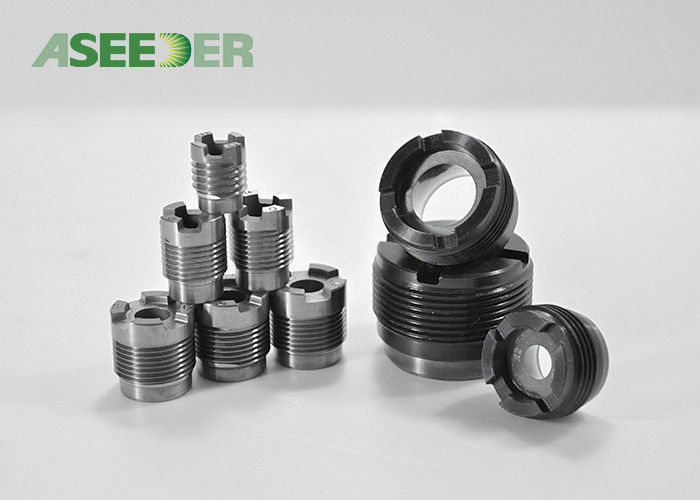

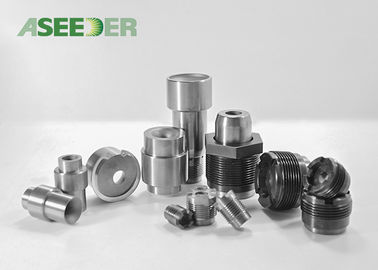

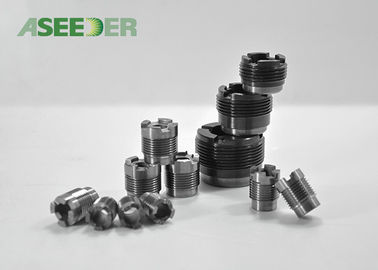

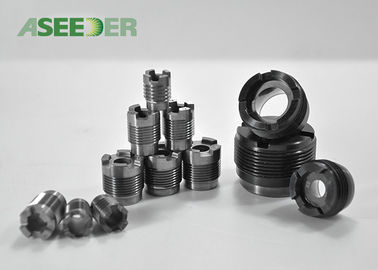

Aseeder Cemented tungsten carbide spary nozzle of oil field drill bit parts are availabe in these styles and sizes:

  • plum blossom type thread nozzles

  • internal hexagonal thread nozzles

  • outer hexagonal thread nozzles

  • cross groove thread nozzles

  • Y type(three grooves) thread nozzles

  • gear wheel drill bitt nozzles and press fracturing nozzles.



Recommended tungsten carbide grade list

Grade Co
(Wt %)
Density
(g/cm3)
Hardness (HRA) TRS
(≥N/mm²)
ZY11-C 9.0-11.0 14.33-14.53 88.6-90.2 2800
ZY15-C 15.5-16.0 13.84-14.04 85.6-87.2 2800
ZY15X 14.7-15.3 13.85-14.15 ≥89 3000
ZY20 18.7-19.1 13.55-13.75 ≥83.8 2800
ZY06X 5.5-6.5 14.80-15.05 91.5-93.5 2800
ZY08 7.5-8.5 14.65-14.85 ≥89.5 2500
ZY09 8.5-9.5 14.50-14.70 ≥89 2800
ZY10X 9.5-10.5 14.30-14.60 90.5-92.5 3000



Advantage::

  •  High stability, long lifespan circle.
  •  Customized as your requirements.
  •  Approved factory for oil and natural gas industry TOP10 customers.
  •  With ASP9100 certificate , API certificate, ISO9001:2015
  •  With a Special Thread Processing Workshop



Package :

Each unit will be packed into a plastic cylinder with foam, then put on carton box.






Major Product Lines

· Wear resistant carbide components via powder metallurgy technique

· Hardfacing (oxy-acetylene spray, PTA, HVOF, etc.) and surface enhancement (phosphating, boronizing, etc.)

· High-precision machining of metals (S.Steel, carbon steel, Inconel 718, etc.)

· Additive manufacture



The products and technologies from Seed (Aseeder) have been widely applied in the fields of oil & gas, chemical engineering, subsea, nuclear power and aerospace industries. Mainly used in harsh operating conditions include severe abrasion, erosion, corrosion, high temperature, high pressure and strong impact. Our major clients are Fortune 500 companies. Seed is the leading export enterprise in China of wear-resistant cemented carbide products and the related high-precision machining techniques.



Representative Products

Chokes and valves trim parts
Pumps seal rings
Labyrinth product series
Drill bit nozzles, inserts, cutters
MWD parts, downhole tool components
TC bearings, PDC thrust bearings
Downhole flow control components
Artificial lift pumps components
Super hard product series
Innovative hardfacing solutions
