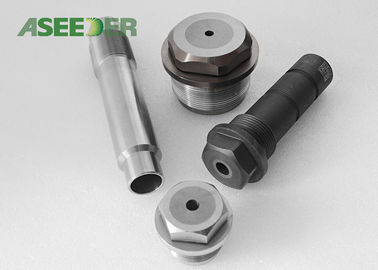

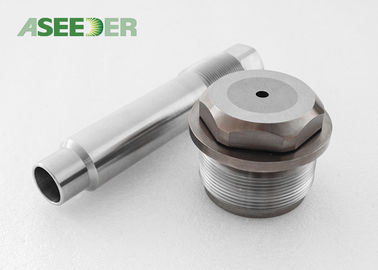

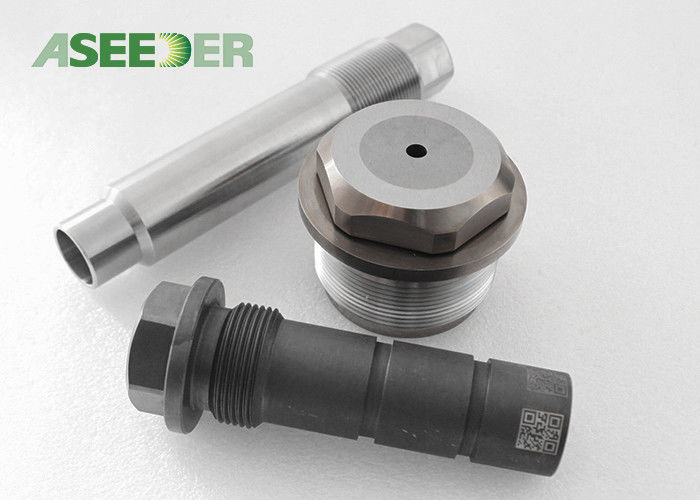

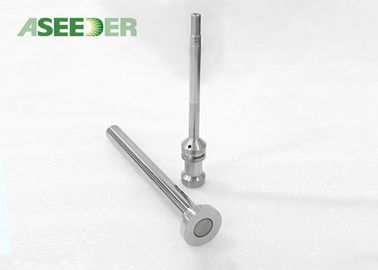

OEM Design Tungsten Carbide Valve Assemblies ZY06X 14.80 - 15.05g/cm3 Density

OEM Design Tungsten Carbide Valve Assemblies ZY06X 14.80 - 15.05g/cm3 Density

  • OEM Design Tungsten Carbide Valve Assemblies ZY06X 14.80 - 15.05g/cm3 Density
  • OEM Design Tungsten Carbide Valve Assemblies ZY06X 14.80 - 15.05g/cm3 Density
  • OEM Design Tungsten Carbide Valve Assemblies ZY06X 14.80 - 15.05g/cm3 Density
  • OEM Design Tungsten Carbide Valve Assemblies ZY06X 14.80 - 15.05g/cm3 Density
OEM Design Tungsten Carbide Valve Assemblies ZY06X 14.80 - 15.05g/cm3 Density
Product Details:
Place of Origin: CHINA
Brand Name: ASEEDER
Certification: ISO,API
Model Number: Choke Stem Assembly-0223
Payment & Shipping Terms:
Minimum Order Quantity: 10 pieces
Price: Negotation
Packaging Details: Aseeder standard packing or Customized packing
Delivery Time: 5-8 weeks depend on quantity
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 15tons per years
Contact Now
Detailed Product Description
Application: Flow Control OEM: Accept
Material: Tungsten Carbide + SS410 Forged Steel Bodies: Alloy And 410 SS
Product Specification Level: PSL1 ~ PSL4 Performance Requirement: PR1, PR2
High Light:

valve stem assembly

,

oscillating valve assembly

Export High Precision Tungsten Carbide Valves Assemblies For Oil And Gas Industry



Features:

1. Tungsten carbide is embedded into choke bean in full length
2. Removeable Choke bean


Process of the orders:
1. Material ---outer material stainless steel, tungsten carbide is embedded into choke bean in full length
2. Medium ----oil gas ,water and sand-
3. Per your drawing---customizable
4. Size -------4/64"- 134/64"

  • Tungsten Carbide Choke Stem is widely used on a choke valve in oil gas industry or other energy industry
  • Tungsten Carbide stem are specifically designed to resist corrosion, abrasion, wear, fretting, sliding wear and impact both onshore offshore and surface subsea applications.
  • Our Tungsten Carbide choke stem includes Both Tungsten Carbide Coating stem and Integral Tungsten Carbide seat inlaying as optional. Our complete line of high-performance tungsten carbide based anti-wear hard facing and integral products will help you to find the best solution for effectively eliminating your abrasion problems.



OEM Design Tungsten Carbide Valve Assemblies ZY06X 14.80 - 15.05g/cm3 Density 0



Tungsten Carbide Materials Grade As Below:


Aseeder Grade Co
(Wt %)
Density
(g/cm3)
Hardness (HRA) TRS
(≥N/mm²)
ZY11-C 9.0-11.0 14.33-14.53 88.6-90.2 2800
ZY15-C 15.5-16.0 13.84-14.04 85.6-87.2 2800
ZY15X 14.7-15.3 13.85-14.15 ≥89 3000
ZY20 18.7-19.1 13.55-13.75 ≥83.8 2800
ZY06X 5.5-6.5 14.80-15.05 91.5-93.5 2800
ZY08 7.5-8.5 14.65-14.85 ≥89.5 2500
ZY09 8.5-9.5 14.50-14.70 ≥89 2800
ZY10X 9.5-10.5 14.30-14.60 90.5-92.5 3000


Features:
1. Use 100% tungsten carbide raw material
2. Stable chemical properties
3. Excellent performance and good wear / corrosion resistance
4. HIP sintering, good compactness
5. Blanks, high machining accuracy / precision
6. OEM customized sizes available
7. Factory’s offer
8. Strict products quality inspection



OEM Design Tungsten Carbide Valve Assemblies ZY06X 14.80 - 15.05g/cm3 Density 1
