| Place of Origin: | CHINA |
| Brand Name: | ASEEDER |
| Certification: | ISO.GE,API |
| Model Number: | Choke beans-0012 |
| Minimum Order Quantity: | 20 pieces |
|---|---|
| Price: | Nogetation |
| Packaging Details: | Aseeder standerd packing or customized packing |
| Delivery Time: | 15-20 workdays |
| Payment Terms: | L/C, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 15 tons per month |
| Product Name: | Good Impact Toughness Choke Bean Used Body Material 410ss And Lined With Tungsten Carbide | Key Word: | Choke Bean |
|---|---|---|---|
| Pressure: | High Pressure | Material: | Tungsten Carbide +SS410 |
| Application: | Oil & Gas Industry | ||
| High Light: | wellhead choke valve,positive choke bean |
||

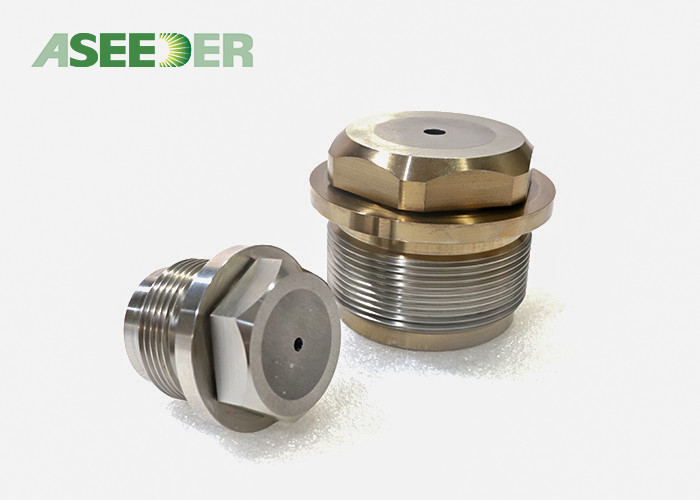

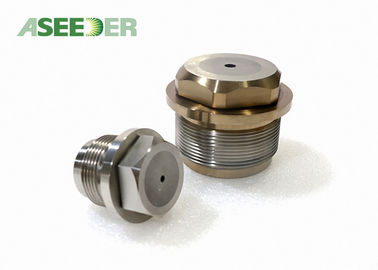

Good impact toughness choke bean used body material 410ss and lined with tungsten carbide

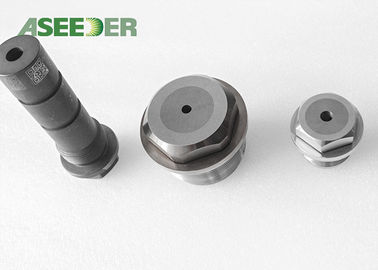

Choke bean is often used in the positive choke valve for controlling the flow, Aseeder choke bean is same as Cameron type H2 big john choke bean, body Material: 410SS, lined with Tungsten Carbide (C10 or C25) , to protect them from corrosive and abrasive wear.
On one side of the choke manifold, calibrated choke beans are used to control flow rate through the fixed choke box. Each bean is a specific diameter, usually in graduations of 1/64-132 inch, Depending on the type of equipment used, the size of the choke bean can be as large as 3 inches.
We can do the QPQ treatment on the body of choke bean, to enhance the surface hardness.

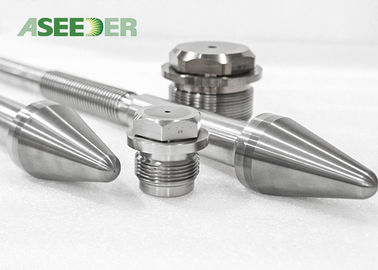

Choke stem and seat are the key parts for ajustable choke valves in wellhead equipment . Assembled with tungsten carbide tips and SS410 body .
1. Size : Usually according to customer's requirement
2. High precision
3. ISO
Tungsten Carbide Materials Grade As Below:
| Aseeder Grade | Co (Wt %) |
Density (g/cm3) |
Hardness (HRA) | TRS (≥N/mm²) |
| ZY11-C | 9.0-11.0 | 14.33-14.53 | 88.6-90.2 | 2800 |
| ZY15-C | 15.5-16.0 | 13.84-14.04 | 85.6-87.2 | 2800 |
| ZY15X | 14.7-15.3 | 13.85-14.15 | ≥89 | 3000 |
| ZY20 | 18.7-19.1 | 13.55-13.75 | ≥83.8 | 2800 |
| ZY06X | 5.5-6.5 | 14.80-15.05 | 91.5-93.5 | 2800 |
| ZY08 | 7.5-8.5 | 14.65-14.85 | ≥89.5 | 2500 |
| ZY09 | 8.5-9.5 | 14.50-14.70 | ≥89 | 2800 |
| ZY10X | 9.5-10.5 | 14.30-14.60 | 90.5-92.5 | 3000 |
Features:
1. Sufficient strength and rigidity.
2. Good impact toughness.
3. Abrasion resistance.
4. Corrosion resistance.
5. Long service life.
6. Anti-compression.
7. Excellent thermal shock resistance.
8. Good sealing character
9. Nice sealing character
PACKING WAY :
1.Packaging way: Foam paper + carton box /wooden case
2.Shipping way : By DHL,UPS,Fedex ,TNT express , By air , By sea
OUR SERVICE
1. Customized material grade and production according to customer's requirement
2. Low MOQ
3. Free sample availble
4. Professional international transportation system to make sure high cost-effective ,safety service.
