| Place of Origin: | CHINA |
| Brand Name: | ASEEDER |
| Certification: | ISO, IPA |
| Model Number: | ASEEDER-042 |
| Minimum Order Quantity: | 20 pieces |
|---|---|
| Price: | Negotation |
| Packaging Details: | foam + small box + carton |
| Delivery Time: | 12-20 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 15 tons per months |
| Materials: | Tungsten Carbide | Size: | Customizable |
|---|---|---|---|
| Type: | Sleeve | Samples: | Free |
| Delivery: | 15-20days | Price: | Negotation |
| High Light: | sliding surface radial plain bearing,sliding radial bearing |
||

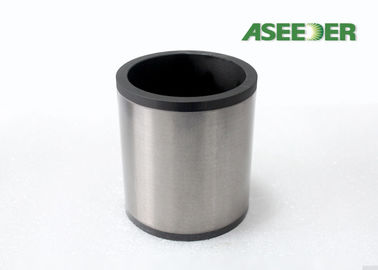

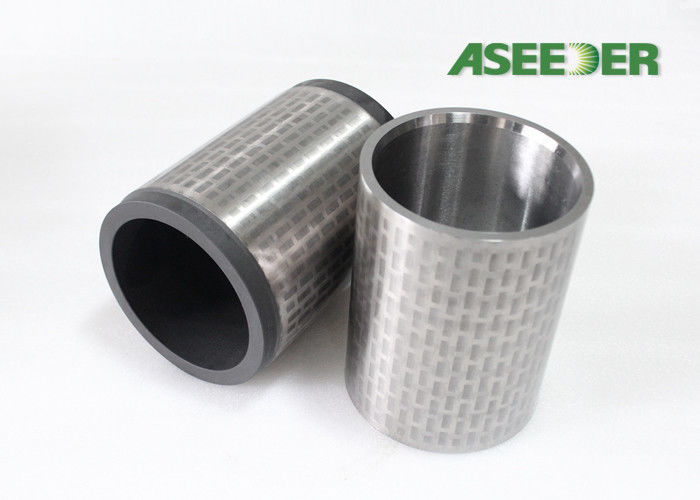

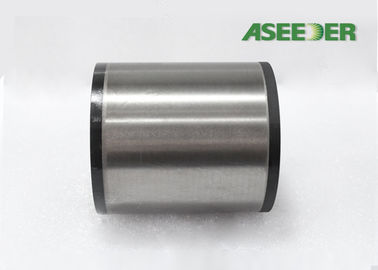

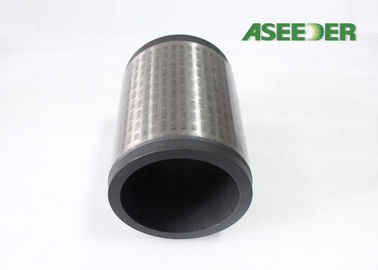

High Hardness OEM ODM Customized Tungsten Carbide Tile Sliding Radial Bearing Sleeve
1. Abrasive resistant,corrosion free,good compression property, high wear-resistant bushing ,heat resistance,low maintenance;
2. The hardness is 10 times of gold,5 times of tool steel,4 times of titanium , oil resistance,separate the harmful medium;
Our advantages:
1. Use 100% Raw material, strict incoming inspection.
2. Overpressure sintering, increasing the densification of the alloy teeth and increasing the 30% life span.
3. Can be customized according to the requirements of the customer.
Materials grade:
|
Grade ASEEDER |
Specification | Application of tungsten carbide | ||
| Density | TRS | Hardness | ||
| G/Cm3 | N/mm2 | HRA | ||
| ZY06X | 14.8-15.1 | ≥1560 | ≥91.0 | Qualified for machining of chilled cast iron, alloy cast iron, refractory steel and alloy steel. Also Qualified for the machining of common cast iron. |
| ZY06 | 14.7-15. 1 | ≥1670 | ≥89.5 | Qualified for finish machining and semi-finish machining for the cast iron, non-ferrous metal, alloy and unalloyed materials. Also qualified for wire drawing for the steel and non-ferrous metal, electric drill for geology use and steel drill etc. |
| ZY08 | 14.6-14.9 | ≥1840 | ≥89 | Qualified for rough machining of cast iron, non-ferrous metal, non-metal materials, drawing of steel, non-ferrous metal and pipes, various drills for geology use, tools for machine manufacture and wearing parts. |
| ZY09 | 14.5-14.8 | ≥2300 | ≥91.5 | Qualified for low speed rough machining, milling titanium alloy and refractory alloy, especially for cut-off tool and silk prick. |
| ZY11C | 14-.3-14.6 | ≥2100 | ≥86.5 | Qualified for molding the drills for heavy-duty rock drill: detachable bits used for deep hole drilling, rock drill trolley etc. |
| ZY15 | 13.9-14.1 | ≥2020 | ≥86.5 | Qualified for hard rock drilling, steel bars with high compression ratios, pipe drawing, punching tools, core cabinet of powder metallurgy automatic molders etc. |
| ZY20 | 13.4-14.8 | ≥2480 | ≥83.5 | Qualified for making dies with low impact such as punching watch parts, battery shells, small screw caps etc. |
| ZY25 | 13.4-14.8 | ≥2480 | ≥82.5 | Qualified for making mould of cold heading, cold stamping and cold pressing used for manufacturing standard parts, bearings etc. |
Factory information:
Major Product Lines
· Wear resistant carbide components via powder metallurgy technique
· Hardfacing (oxy-acetylene spray, PTA, HVOF, etc.) and surface enhancement (phosphating, boronizing, etc.)
· High-precision machining of metals (S.Steel, carbon steel, Inconel 718, etc.)
· Additive manufacture
The products and technologies from Seed (Aseeder) have been widely applied in the fields of oil & gas, chemical engineering, subsea, nuclear power and aerospace industries. Mainly used in harsh operating conditions include severe abrasion, erosion, corrosion, high temperature, high pressure and strong impact. Our major clients are Fortune 500 companies. Seed is the leading export enterprise in China of wear-resistant cemented carbide products and the related high-precision machining techniques.
Representative Products
Chokes and valves trim parts
Pumps seal rings
Labyrinth product series
Drill bit nozzles, inserts, cutters
MWD parts, downhole tool components
TC bearings, PDC thrust bearings
Downhole flow control components
Artificial lift pumps components
Super hard product series
Innovative hardfacing solutions
