Place of Origin: | CHINA |
Brand Name: | ASEEDER |
Certification: | ISO,TDS,API, ASP9100 |
Model Number: | AN-330 |
Minimum Order Quantity: | 20 pieces for Standard package customer's demand |
---|---|
Price: | Negotiable |
Packaging Details: | Standard package or to customer's demand |
Delivery Time: | 30 working days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 50000pcs per months |
Product Name: | Oil Drilling Bit Nozzle | Materials: | Tunsten Carbide |
---|---|---|---|
Industry: | Oil Service Industry | Keyword: | Oil Spray Nozzle |
Feature: | Long Functional Life | Packing: | Plastic Cylinder With Protection Foam |
High Light: | oil spray nozzle,wet blasting nozzle,Cross Goove Thread Nozzle |

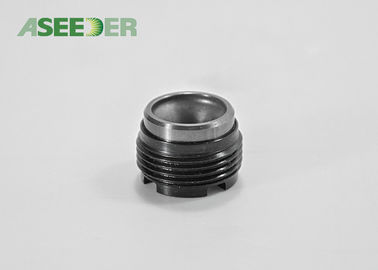

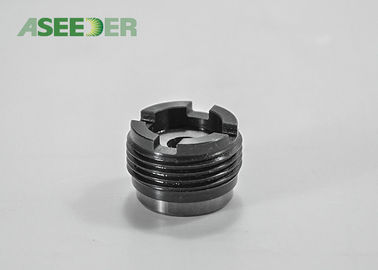

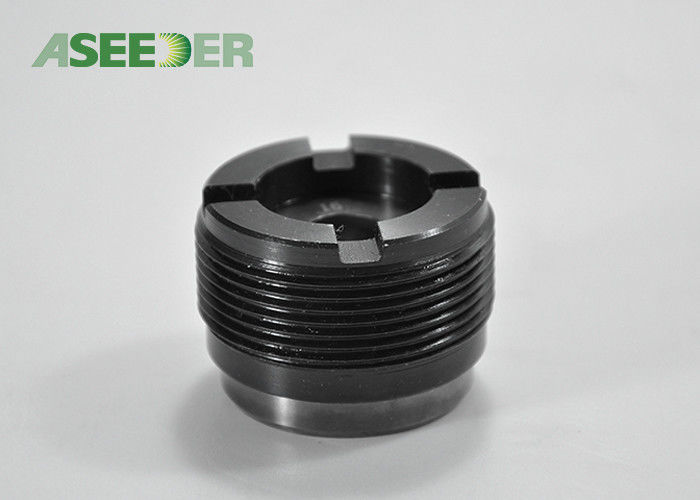

Long Functional Life Oil Drilling Bit Nozzle / Cross Goove Thread Nozzle
Oil Drilling Bit Nozzle Introduction
The tungsten carbide nozzles is wear resistance .Because it means high thermal conductivity of tungsten carbide. The nozzle lifetime is very long. Tungsten carbide will not soften at high temperatures like hardened steel. And You use the nozzle without worry about that. The high thermal conductivity and optimized stable flow is maintained through the entire nozzle. It solve customer problem that the nozzle will clog. Tungsten carbide nozzle manufacturing cost is low than other material, and maintain better flow and temperature stability at the nozzle tip.
Oil Drilling Bit Nozzle Features:
ASSEDER hard wearing tungsten carbide nozzles have a variety of specifications, processed and made with high quality raw material. It has the characteristics of high temperature resistance, corrosion resistance, abrasion resistance, high precision and so on.
HIGH DENSITY CARBIDE NOZZLES: A higher density equals longer lasting than most other brands. These abrasive oil spray nozzles are compacted with a premium tungsten carbide material for a heavier weight of 30 grams!
HIGH QUALITY, HIGH PERFORMANCE: All tungsten carbide nozzles are not equal —ASEEDER nozzles feature top wear grade material and durable construction.
LONGEST LASTING: ASEEDER oil spray nozzle roughly estimates these to last 500-800 hours with steel grit, 300-400 hours with slag and 20-40 hours with aluminum oxide abrasive. Actual service life will vary depending on blast pressure, media size, and particle shape.
QUALITY, MADE: These oil spray nozzles are professionally manufactured by one of the highest respected companies providing unsurpassed wear resistance in abrasion.we are able to offer premium tungsten carbide oil spray nozzles that last long and save you money in the long run.
Recommended tungsten carbide grade list
Grade | Co (Wt %) |
Density (g/cm3) |
Hardness (HRA) | TRS (≥N/mm²) |
ZY11-C | 9.0-11.0 | 14.33-14.53 | 88.6-90.2 | 2800 |
ZY15-C | 15.5-16.0 | 13.84-14.04 | 85.6-87.2 | 2800 |
ZY15X | 14.7-15.3 | 13.85-14.15 | ≥89 | 3000 |
ZY20 | 18.7-19.1 | 13.55-13.75 | ≥83.8 | 2800 |
ZY06X | 5.5-6.5 | 14.80-15.05 | 91.5-93.5 | 2800 |
ZY08 | 7.5-8.5 | 14.65-14.85 | ≥89.5 | 2500 |
ZY09 | 8.5-9.5 | 14.50-14.70 | ≥89 | 2800 |
ZY10X | 9.5-10.5 | 14.30-14.60 | 90.5-92.5 | 3000 |
Factory Advantage::
Package :
Each unit will be packed into a plastic cylinder with foam, then put on carton box.
Major Product Lines
· Wear resistant carbide components via powder metallurgy technique
· Hardfacing (oxy-acetylene spray, PTA, HVOF, etc.) and surface enhancement (phosphating, boronizing, etc.)
· High-precision machining of metals (S.Steel, carbon steel, Inconel 718, etc.)
· Additive manufacture
The products and technologies from Seed (Aseeder) have been widely applied in the fields of oil & gas, chemical engineering, subsea, nuclear power and aerospace industries. Mainly used in harsh operating conditions include severe abrasion, erosion, corrosion, high temperature, high pressure and strong impact. Our major clients are Fortune 500 companies. Seed is the leading export enterprise in China of wear-resistant cemented carbide products and the related high-precision machining techniques.
Representative Products
Chokes and valves trim parts
Pumps seal rings
Labyrinth product series
Drill bit nozzles, inserts, cutters
MWD parts, downhole tool components
TC bearings, PDC thrust bearings
Downhole flow control components
Artificial lift pumps components
Super hard product series
Innovative hardfacing solutions
Contact Person: Carson.Chen
Tel: 86-13910811744
Fax: 86-0731-22725555
