| Place of Origin: | CHINA |
| Brand Name: | ASEEDER |
| Certification: | ISO,TDS,API, ASP9100 |
| Model Number: | AN-19 |
| Minimum Order Quantity: | 20 pieces for Standard package customer's demand |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard package or to customer's demand |
| Delivery Time: | 30 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 5000pcs per months |
| Product Name: | Oil Spray Head Thread Nozzle | Materials: | Tungsten Carbide |
|---|---|---|---|
| Industry: | Oil, Gas Industry | Application: | Press Fracturing |
| Type: | Cross Groove Thread | OEM: | Available |
| High Light: | tungsten carbide nozzle,wet blasting nozzle,Cross Groove Thread Nozzle |
||

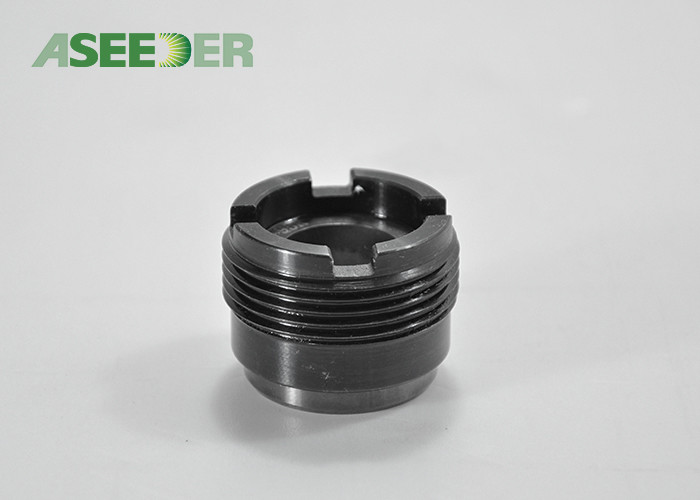

Cross Groove Oil Spray Head Thread Nozzle For Oil / Gas Industry
Oil Spray Head Thread Nozzle Description :
Tungsten carbide oil spray nozzles are the most commonly used nozzles in the Oil & Gas industry. They are tough and are best suited for use in harsh work site conditions. These oil spray nozzles are professionally manufactured by one of the highest respected companies providing unsurpassed wear resistance in abrasion.
Oil Spray Head Thread Nozzle Features:
ASEEDER hard wearing tungsten carbide nozzles have a variety of specifications, processed and made with high quality raw material. It has the characteristics of high temperature resistance, corrosion resistance, abrasion resistance, high precision and so on.
High precision wet blasting nozzle are availabe in these styles and sizes:
plum blossom type thread nozzles
internal hexagonal thread nozzles
outer hexagonal thread nozzles
cross groove thread nozzles
Y type(three grooves) thread nozzles
gear wheel drill bitt nozzles and press fracturing nozzles.
Recommended tungsten carbide grade list
| Grade | Co (Wt %) |
Density (g/cm3) |
Hardness (HRA) | TRS (≥N/mm²) |
| ZY11-C | 9.0-11.0 | 14.33-14.53 | 88.6-90.2 | 2800 |
| ZY15-C | 15.5-16.0 | 13.84-14.04 | 85.6-87.2 | 2800 |
| ZY15X | 14.7-15.3 | 13.85-14.15 | ≥89 | 3000 |
| ZY20 | 18.7-19.1 | 13.55-13.75 | ≥83.8 | 2800 |
| ZY06X | 5.5-6.5 | 14.80-15.05 | 91.5-93.5 | 2800 |
| ZY08 | 7.5-8.5 | 14.65-14.85 | ≥89.5 | 2500 |
| ZY09 | 8.5-9.5 | 14.50-14.70 | ≥89 | 2800 |
| ZY10X | 9.5-10.5 | 14.30-14.60 | 90.5-92.5 | 3000 |
Oil Spray Head Thread Nozzle Advantage::
Package :
Each unit will be packed into a plastic cylinder with foam, then put on carton box.
Major Product Lines
· Wear resistant carbide components via powder metallurgy technique
· Hardfacing (oxy-acetylene spray, PTA, HVOF, etc.) and surface enhancement (phosphating, boronizing, etc.)
· High-precision machining of metals (S.Steel, carbon steel, Inconel 718, etc.)
· Additive manufacture
The products and technologies from Seed (Aseeder) have been widely applied in the fields of oil & gas, chemical engineering, subsea, nuclear power and aerospace industries. Mainly used in harsh operating conditions include severe abrasion, erosion, corrosion, high temperature, high pressure and strong impact. Our major clients are Fortune 500 companies. Seed is the leading export enterprise in China of wear-resistant cemented carbide products and the related high-precision machining techniques.
Representative Products
Chokes and valves trim parts
Pumps seal rings
Labyrinth product series
Drill bit nozzles, inserts, cutters
MWD parts, downhole tool components
TC bearings, PDC thrust bearings
Downhole flow control components
Artificial lift pumps components
Super hard product series
Innovative hardfacing solutions
