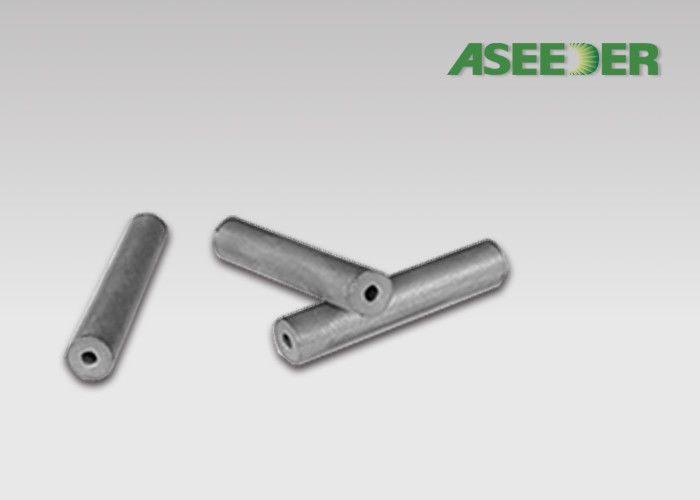

High Pressure Grinding 93.5HRA ZY05X Tungsten Carbide Rod

High Pressure Grinding 93.5HRA ZY05X Tungsten Carbide Rod

  • High Pressure Grinding 93.5HRA ZY05X Tungsten Carbide Rod
  • High Pressure Grinding 93.5HRA ZY05X Tungsten Carbide Rod
  • High Pressure Grinding 93.5HRA ZY05X Tungsten Carbide Rod
  • High Pressure Grinding 93.5HRA ZY05X Tungsten Carbide Rod
  • High Pressure Grinding 93.5HRA ZY05X Tungsten Carbide Rod
High Pressure Grinding 93.5HRA ZY05X Tungsten Carbide Rod
Product Details:
Place of Origin: China
Brand Name: Aseeder
Certification: ISO9001,API
Model Number: Rod-017
Payment & Shipping Terms:
Minimum Order Quantity: 5pcs
Price: USD 5~25 Pcs
Packaging Details: Good packing with Carton box
Payment Terms: D/A, D/P, L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000 pcs / week
Contact Now
Detailed Product Description
Material: Tungstun Carbide Grade: Cobalt Or Nickel
Size: Any Size Shape: Customized
Color: Metal Color Level: AAA+
High Light:

ZY05X Tungsten Carbide Rod

,

93.5HRA Tungsten Carbide Rod

,

ISO9001 cemented carbide rods

High Pressure Grinding Roll Tungsten Carbide Rod With Excellence Quality And Long Liftime





Tungsten Carbide Rods Features:

1. Use 100% tungsten carbide raw material

2. Stable chemical properties

3. Excellent performance and good wear / corrosion resistance

4. HIP sintering, good compactness

5. Blanks, high machining accuracy / precision

6. OEM customized sizes available

7. Factory’s offer

8. Strict products quality inspection

9. With API certificate, ISO9001:2015



High Pressure Grinding 93.5HRA ZY05X Tungsten Carbide Rod 0



Recommended tungsten carbide grade list

Grade Co/Ni
(Wt %)
Density
(g/cm3)
ISO 3369
Hardness (HRA)
ISO 3738:1
TRS
(≥N/mm²)

ISO 3327

Grain Size

(μm)
ISO 4499:2

ZY04X 3.5-4.5 15.00-15.20 92.8-93.8 ≥2500 0.8-1.0
ZY05X 4.5-5.5 14.80-15.05 ≥93.5 ≥2800 ≤0.8
ZY06X 5.5-6.5 14.80-15.05 92.5-93.8 ≥3000 ≤0.8
ZY06-G 5.5-6.5 14.89-15.05 91.3-92.3 ≥3000 0.8-1.0
ZY08 7.5-8.5 14.65-14.85 90.0-91.5 ≥3000 1.2-1.6
ZY10X 9.5-10.5 14.30-14.60 90.5-92.5 ≥3000 ≤0.8
ZY12 11.0-12.5 14.15-14.45 88.5-90.0 ≥3000 0.8-1.2
ZY15X 15.0-16.0 13.85-14.15 ≥89.0 ≥3000 ≤0.8
ZY20 18.0-19.0 13.55-13.75 ≥83.8 ≥2800 1.2-1.6
ZY25 24.0-26.0 12.95-13.15 ≥81.5 ≥2800 3.0-5.0
Ni06X 5.5-6.5 14.85-15.05 92.0-93.5 ≥2800 ≤0.8
Ni10-H 10.0-11.0 14.40-14.70 89-90.5 ≥2800 0.8-1.2
Ni15-G 14.3-15.3 13.90-14.10 ≥82.0 ≥2800 3.2-4.0



High Pressure Grinding 93.5HRA ZY05X Tungsten Carbide Rod 1High Pressure Grinding 93.5HRA ZY05X Tungsten Carbide Rod 2



Seed Technologies Corp., LTD., located in Zhuzhou (China), is a high-tech developer, manufacturer, and distributor of superior wear resistant parts, tool assembly and equipment for Oil and gas, Areospace, Valve and Pumps industry.

High Pressure Grinding 93.5HRA ZY05X Tungsten Carbide Rod 3

High Pressure Grinding 93.5HRA ZY05X Tungsten Carbide Rod 4High Pressure Grinding 93.5HRA ZY05X Tungsten Carbide Rod 5High Pressure Grinding 93.5HRA ZY05X Tungsten Carbide Rod 6High Pressure Grinding 93.5HRA ZY05X Tungsten Carbide Rod 7



Aseeder Corporation was invested by Seed as a Houston based company dedicated for sales and customer support in north America market.

The products and technologies from Seed (Aseeder) have been widely applied in the fields of oil & gas, chemical engineering, subsea, nuclear power and aerospace industries. Mainly used in harsh operating conditions include severe abrasion, erosion, corrosion, high temperature, high pressure and strong impact.Our major clients are Fortune 500 companies. Seed is the leading export enterprise in China of wear-resistant cemented carbide products and the related high-precision machining techniques.



High Pressure Grinding 93.5HRA ZY05X Tungsten Carbide Rod 8
