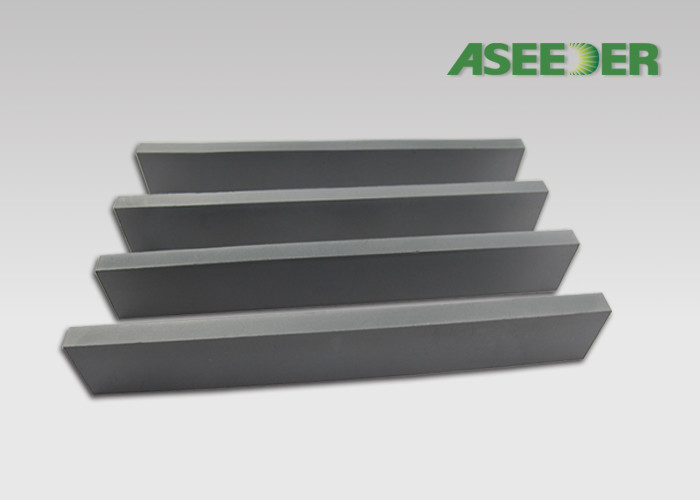

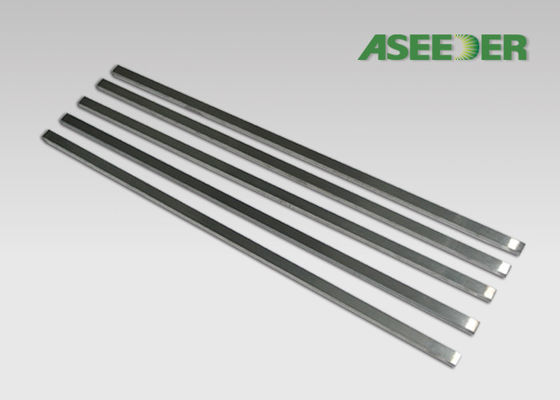

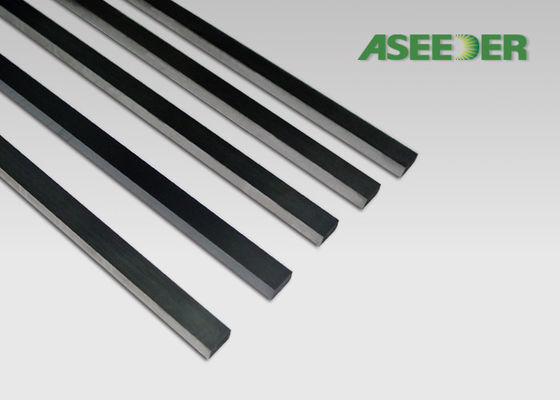

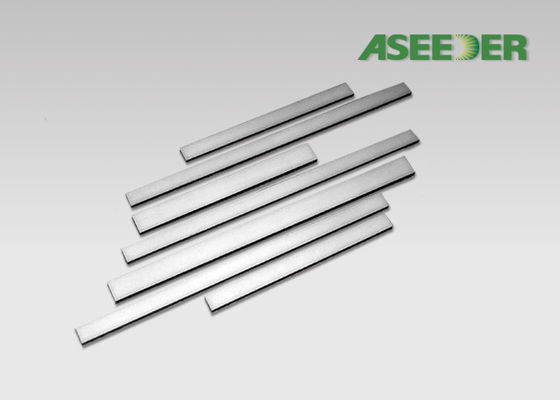

Corrosion Resistant Sintering YG6 YG8 Tungsten Carbide Strips

Corrosion Resistant Sintering YG6 YG8 Tungsten Carbide Strips

  • Corrosion Resistant Sintering YG6 YG8 Tungsten Carbide Strips
  • Corrosion Resistant Sintering YG6 YG8 Tungsten Carbide Strips
  • Corrosion Resistant Sintering YG6 YG8 Tungsten Carbide Strips
  • Corrosion Resistant Sintering YG6 YG8 Tungsten Carbide Strips
Corrosion Resistant Sintering YG6 YG8 Tungsten Carbide Strips
Product Details:
Place of Origin: China
Brand Name: Aseeder
Certification: ISO9001,API
Model Number: Plates-002
Payment & Shipping Terms:
Minimum Order Quantity: 5pcs
Price: USD 5~25 Pcs
Packaging Details: Good packing with Carton box
Payment Terms: D/A, D/P, L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000 pcs / week
Contact Now
Detailed Product Description
Material: Tungstun Carbide Grade: Cobalt Or Nickel
Size: Any Size Shape: Customized
Color: Metal Color Level: AAA+
High Light:

YG8 Tungsten Carbide Strips

,

YG6 Tungsten Carbide Strips

,

Sintering Carbide Strips

Sintering Solid YG6 YG8 Tungsten Carbide Wear Strips





Tungsten Carbide Plates Features:

1. Use 100% tungsten carbide raw material

2. Stable chemical properties

3. Excellent performance and good wear / corrosion resistance

4. HIP sintering, good compactness

5. Blanks, high machining accuracy / precision

6. OEM customized sizes available

7. Factory’s offer

8. Strict products quality inspection

9. With API certificate, ISO9001:2015



Corrosion Resistant Sintering YG6 YG8 Tungsten Carbide Strips 0



Recommended tungsten carbide grade list

Grade Co/Ni
(Wt %)
Density
(g/cm3)
ISO 3369
Hardness (HRA)
ISO 3738:1
TRS
(≥N/mm²)

ISO 3327

Grain Size

(μm)
ISO 4499:2

ZY04X 3.5-4.5 15.00-15.20 92.8-93.8 ≥2500 0.8-1.0
ZY05X 4.5-5.5 14.80-15.05 ≥93.5 ≥2800 ≤0.8
ZY06X 5.5-6.5 14.80-15.05 92.5-93.8 ≥3000 ≤0.8
ZY06-G 5.5-6.5 14.89-15.05 91.3-92.3 ≥3000 0.8-1.0
ZY08 7.5-8.5 14.65-14.85 90.0-91.5 ≥3000 1.2-1.6
ZY10X 9.5-10.5 14.30-14.60 90.5-92.5 ≥3000 ≤0.8
ZY12 11.0-12.5 14.15-14.45 88.5-90.0 ≥3000 0.8-1.2
ZY15X 15.0-16.0 13.85-14.15 ≥89.0 ≥3000 ≤0.8
ZY20 18.0-19.0 13.55-13.75 ≥83.8 ≥2800 1.2-1.6
ZY25 24.0-26.0 12.95-13.15 ≥81.5 ≥2800 3.0-5.0
Ni06X 5.5-6.5 14.85-15.05 92.0-93.5 ≥2800 ≤0.8
Ni10-H 10.0-11.0 14.40-14.70 89-90.5 ≥2800 0.8-1.2
Ni15-G 14.3-15.3 13.90-14.10 ≥82.0 ≥2800 3.2-4.0



Corrosion Resistant Sintering YG6 YG8 Tungsten Carbide Strips 1Corrosion Resistant Sintering YG6 YG8 Tungsten Carbide Strips 2



Seed Technologies Corp., LTD., located in Zhuzhou (China), is a high-tech developer, manufacturer, and distributor of superior wear resistant parts, tool assembly and equipment for Oil and gas, Areospace, Valve and Pumps industry.



Corrosion Resistant Sintering YG6 YG8 Tungsten Carbide Strips 3Corrosion Resistant Sintering YG6 YG8 Tungsten Carbide Strips 4Corrosion Resistant Sintering YG6 YG8 Tungsten Carbide Strips 5Corrosion Resistant Sintering YG6 YG8 Tungsten Carbide Strips 6



Aseeder Corporation was invested by Seed as a Houston based company dedicated for sales and customer support in north America market.

The products and technologies from Seed (Aseeder) have been widely applied in the fields of oil & gas, chemical engineering, subsea, nuclear power and aerospace industries. Mainly used in harsh operating conditions include severe abrasion, erosion, corrosion, high temperature, high pressure and strong impact.Our major clients are Fortune 500 companies. Seed is the leading export enterprise in China of wear-resistant cemented carbide products and the related high-precision machining techniques.
