Good Sealing Character Choke Bean Free Samples For Wellhead Equipment

Good Sealing Character Choke Bean Free Samples For Wellhead Equipment

  • Good Sealing Character Choke Bean Free Samples For Wellhead Equipment
  • Good Sealing Character Choke Bean Free Samples For Wellhead Equipment
  • Good Sealing Character Choke Bean Free Samples For Wellhead Equipment
  • Good Sealing Character Choke Bean Free Samples For Wellhead Equipment
Good Sealing Character Choke Bean Free Samples For Wellhead Equipment
Product Details:
Place of Origin: CHINA
Brand Name: ASEEDER
Certification: ISO.GE,API
Model Number: Choke beans-0095
Payment & Shipping Terms:
Minimum Order Quantity: 20 pieces
Price: Nogetation
Packaging Details: Aseeder standerd packing or customized packing
Delivery Time: 15-20 workdays
Payment Terms: L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 15 tons per month
Contact Now
Detailed Product Description
Product Name: China High Qulaity Choke Bean Used Material 410SS And Lined With Tungsten Carbide For Wellhead Equipment Material: Tungsten Carbide +SS410
Industry: Oil & Gas Industry Key Word: Choke Stem
Pressure: High Pressue
High Light:

wellhead choke valve

,

positive choke bean

China high qulaity choke bean used material 410SS and lined with tungsten carbide for wellhead equipment

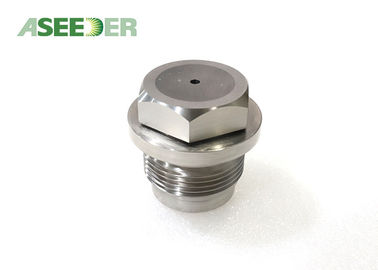

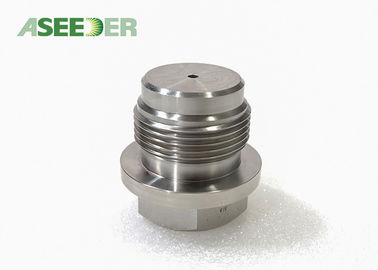

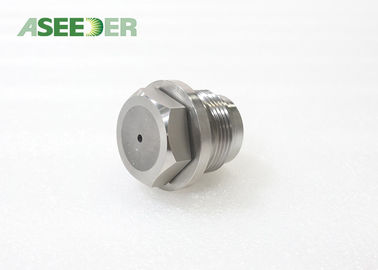

Choke bean is often used in the positive choke valve for controlling the flow, Aseeder choke bean is same as Cameron

type H2 big john choke bean, body Material: 410SS, lined with Tungsten Carbide (C10 or C25) , to protect them from

corrosive and abrasive wear.

On one side of the choke manifold, calibrated choke beans are used to control flow rate through the fixed choke box.

Each bean is a specific diameter, usually in graduations of 1/64-132 inch, Depending on the type of equipment used,

the size of the choke bean can be as large as 3 inches.

We can do the QPQ treatment on the body of choke bean, to enhance the surface hardness.



Good Sealing Character Choke Bean Free Samples For Wellhead Equipment 0

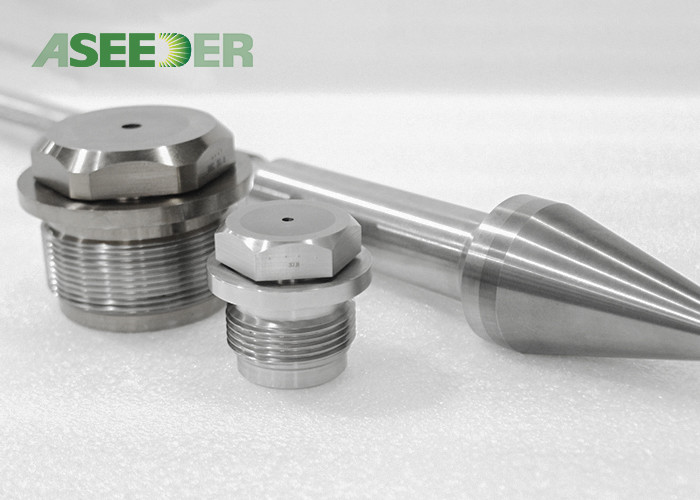

Choke stem and seat are the key parts for ajustable choke valves in wellhead equipment . Assembled with

tungsten carbide tips and SS410 body .

1. Size : Usually according to customer's requirement
2. High precision
3. ISO



Tungsten Carbide Materials Grade As Below:


Aseeder Grade Co
(Wt %)
Density
(g/cm3)
Hardness (HRA) TRS
(≥N/mm²)
ZY11-C 9.0-11.0 14.33-14.53 88.6-90.2 2800
ZY15-C 15.5-16.0 13.84-14.04 85.6-87.2 2800
ZY15X 14.7-15.3 13.85-14.15 ≥89 3000
ZY20 18.7-19.1 13.55-13.75 ≥83.8 2800
ZY06X 5.5-6.5 14.80-15.05 91.5-93.5 2800
ZY08 7.5-8.5 14.65-14.85 ≥89.5 2500
ZY09 8.5-9.5 14.50-14.70 ≥89 2800
ZY10X 9.5-10.5 14.30-14.60 90.5-92.5 3000


Features:

1. Sufficient strength and rigidity.

2. Good impact toughness.

3. Abrasion resistance.

4. Corrosion resistance.

5. Long service life.

6. Anti-compression.

7. Excellent thermal shock resistance.

8. Good sealing character

9. Nice sealing character



PACKING WAY :
1.Packaging way: Foam paper + carton box /wooden case
2.Shipping way : By DHL,UPS,Fedex ,TNT express , By air , By sea

OUR SERVICE
1. Customized material grade and production according to customer's requirement
2. Low MOQ
3. Free sample availble
4. Professional international transportation system to make sure high cost-effective ,safety service.
