| Place of Origin: | CHINA |
| Brand Name: | ASEEDER |
| Certification: | ISO,TDS,API, ASP9100 |
| Model Number: | AN-029 |
| Minimum Order Quantity: | 20 pieces for Standard package customer's demand |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard package or to customer's demand |
| Delivery Time: | 30 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 5000pcs per months |
| Materials: | WC + CO | Shape: | Inner Hexagon |
|---|---|---|---|
| Application: | Pdc Drilling Bit | Type: | Tungsten Carbide Nozzles |
| Packing: | Plastic Cylinder | Name: | Outer Hexagon Tungsten Carbide Spray Nozzle For Pdc Drilling Bit |
| High Light: | hexagon alloy nozzle,tungsten carbide thread nozzle |
||

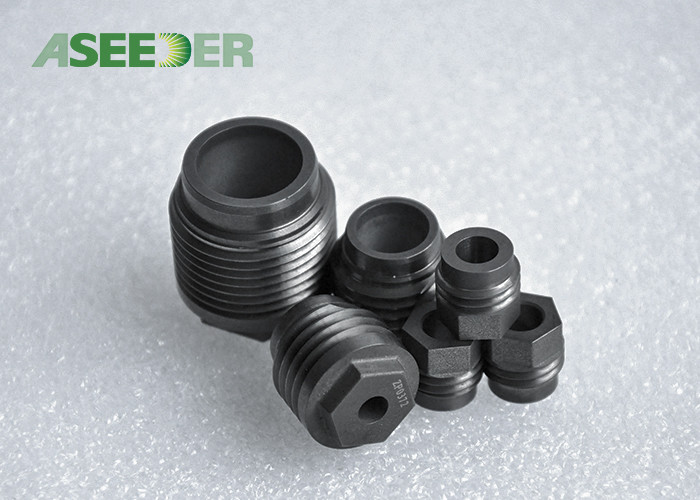

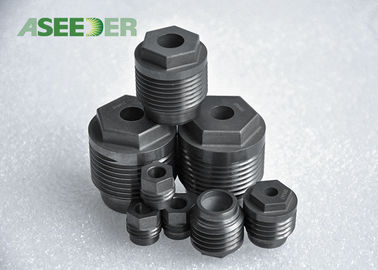

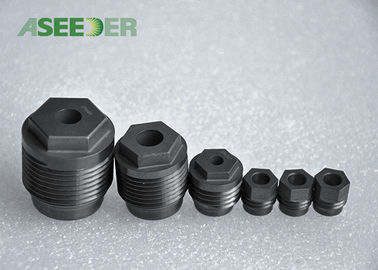

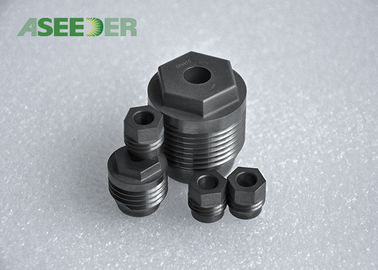

Outer Hexagon Tungsten Carbide Spray Nozzle For Pdc Drilling Bit
Tungsten carbide nozzle is mainly used in chemical industry, food, machinery, metallurgy, architecture and other industries for pulverizing, derusting, cleaning, atomization, etc. Aseeder tungsten carbide nozzles are mainly for Oil Drilling Tools.
Features:
Aseeder Cemented tungsten carbide spary nozzle of oil field drill bit parts have a variety of specifications, processed and made with high quality raw material. It has the characteristics of high temperature resistance, corrosion resistance, abrasion resistance, high precision and so on.
Benefit
High efficiency for cooling, cleaning and cuttings evacuation, extend the drilling bit lift.
When tightening nozzle reduced pop-up force.
Recommended tungsten carbide grade list
| Grade | Co (Wt %) |
Density (g/cm3) |
Hardness (HRA) | TRS (≥N/mm²) |
| ZY11-C | 9.0-11.0 | 14.33-14.53 | 88.6-90.2 | 2800 |
| ZY15-C | 15.5-16.0 | 13.84-14.04 | 85.6-87.2 | 2800 |
| ZY15X | 14.7-15.3 | 13.85-14.15 | ≥89 | 3000 |
| ZY20 | 18.7-19.1 | 13.55-13.75 | ≥83.8 | 2800 |
| ZY06X | 5.5-6.5 | 14.80-15.05 | 91.5-93.5 | 2800 |
| ZY08 | 7.5-8.5 | 14.65-14.85 | ≥89.5 | 2500 |
| ZY09 | 8.5-9.5 | 14.50-14.70 | ≥89 | 2800 |
| ZY10X | 9.5-10.5 | 14.30-14.60 | 90.5-92.5 | 3000 |
Advantage::
Package :
Each unit will be packed into a plastic cylinder with foam, then put on carton box.
Major Product Lines
· Wear resistant carbide components via powder metallurgy technique
· Hardfacing (oxy-acetylene spray, PTA, HVOF, etc.) and surface enhancement (phosphating, boronizing, etc.)
· High-precision machining of metals (S.Steel, carbon steel, Inconel 718, etc.)
· Additive manufacture
Representative Products
Chokes and valves trim parts
Pumps seal rings
Labyrinth product series
Drill bit nozzles, inserts, cutters
MWD parts, downhole tool components
TC bearings, PDC thrust bearings
Downhole flow control components
Artificial lift pumps components
Super hard product series
Innovative hardfacing solutions
