Place of Origin: | CHINA |
Brand Name: | ASEEDER |
Certification: | ISO,TDS,API, ASP9100 |
Model Number: | AN-040 |
Minimum Order Quantity: | 20 pieces for Standard package customer's demand |
---|---|
Price: | Negotiable |
Packaging Details: | Standard package or to customer's demand |
Delivery Time: | 30 working days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 5000pcs per months |
Materials: | Sintered Tungsten Carbide | Industry: | Gas And Oil Industry |
---|---|---|---|
Application: | Pdc Drill Bits | Type: | Tungsten Carbide Nozzle |
Packing: | Master Carton With Plastic Cylinder | Name: | Impact Resistance Drill Bit Nozzle For Pcd Drilling Bits In High Precision |
High Light: | tungsten carbide thread nozzle,oil spray head thread nozzle |

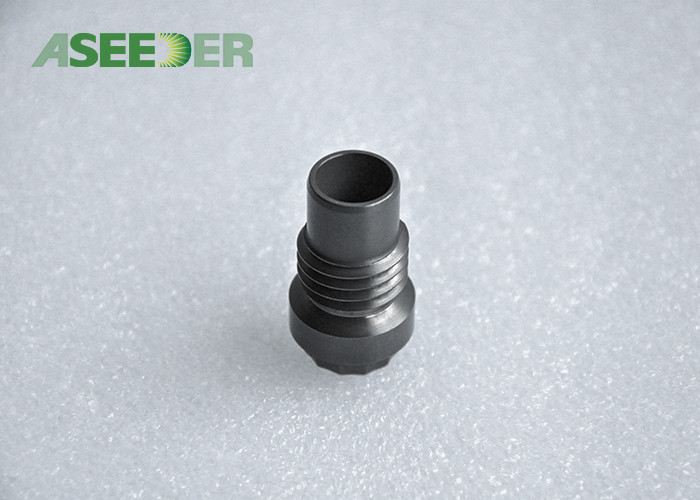

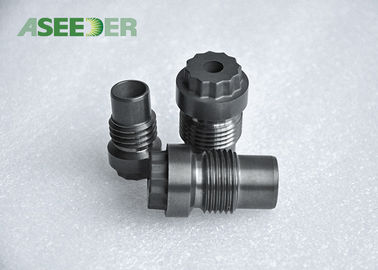

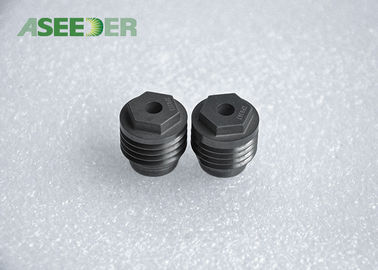

Impact Resistance Drill Bit Nozzle For Pcd Drilling Bits In High Precision
Applications :
We are manufacturing Cemented tungsten carbide spary nozzle of oil field drill bit parts for use in roller cone and fixed cutter drill bits. Aseeder Cemented tungsten carbide spary nozzle of oil field drill bit parts are available in a wide range of styles and size combinations for Petroleum industry.
Features:
Aseeder Cemented tungsten carbide spary nozzle of oil field drill bit parts have a variety of specifications, processed and made with high quality raw material. It has the characteristics of high temperature resistance, corrosion resistance, abrasion resistance, high precision and so on.
Aseeder Cemented tungsten carbide spary nozzle of oil field drill bit parts are availabe in these styles and sizes:
plum blossom type thread nozzles
internal hexagonal thread nozzles
outer hexagonal thread nozzles
cross groove thread nozzles
Y type(three grooves) thread nozzles
gear wheel drill bitt nozzles and press fracturing nozzles.
Recommended tungsten carbide grade list
Grade | Co (Wt %) |
Density (g/cm3) |
Hardness (HRA) | TRS (≥N/mm²) |
ZY11-C | 9.0-11.0 | 14.33-14.53 | 88.6-90.2 | 2800 |
ZY15-C | 15.5-16.0 | 13.84-14.04 | 85.6-87.2 | 2800 |
ZY15X | 14.7-15.3 | 13.85-14.15 | ≥89 | 3000 |
ZY20 | 18.7-19.1 | 13.55-13.75 | ≥83.8 | 2800 |
ZY06X | 5.5-6.5 | 14.80-15.05 | 91.5-93.5 | 2800 |
ZY08 | 7.5-8.5 | 14.65-14.85 | ≥89.5 | 2500 |
ZY09 | 8.5-9.5 | 14.50-14.70 | ≥89 | 2800 |
ZY10X | 9.5-10.5 | 14.30-14.60 | 90.5-92.5 | 3000 |
Advantage::
Package :
Each unit will be packed into a plastic cylinder with foam, then put on carton box.
Major Product Lines
· Wear resistant carbide components via powder metallurgy technique
· Hardfacing (oxy-acetylene spray, PTA, HVOF, etc.) and surface enhancement (phosphating, boronizing, etc.)
· High-precision machining of metals (S.Steel, carbon steel, Inconel 718, etc.)
· Additive manufacture
The products and technologies from Seed (Aseeder) have been widely applied in the fields of oil & gas, chemical engineering, subsea, nuclear power and aerospace industries. Mainly used in harsh operating conditions include severe abrasion, erosion, corrosion, high temperature, high pressure and strong impact. Our major clients are Fortune 500 companies. Seed is the leading export enterprise in China of wear-resistant cemented carbide products and the related high-precision machining techniques.
Representative Products
Chokes and valves trim parts
Pumps seal rings
Labyrinth product series
Drill bit nozzles, inserts, cutters
MWD parts, downhole tool components
TC bearings, PDC thrust bearings
Downhole flow control components
Artificial lift pumps components
Super hard product series
Innovative hardfacing solutions
