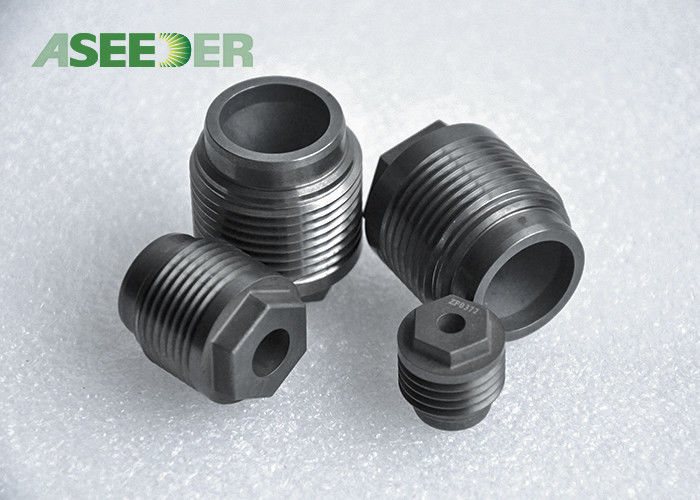

Abrasion Resistance Tungsten Carbide Thread Nozzle For Hard Working Condition

Abrasion Resistance Tungsten Carbide Thread Nozzle For Hard Working Condition

    • Abrasion Resistance Tungsten Carbide Thread Nozzle For Hard Working Condition
    • Abrasion Resistance Tungsten Carbide Thread Nozzle For Hard Working Condition
    • Abrasion Resistance Tungsten Carbide Thread Nozzle For Hard Working Condition
    • Abrasion Resistance Tungsten Carbide Thread Nozzle For Hard Working Condition
  • Abrasion Resistance Tungsten Carbide Thread Nozzle For Hard Working Condition

    Product Details:

    Place of Origin: CHINA
    Brand Name: ASEEDER
    Certification: ISO,TDS,API, ASP9100
    Model Number: AN-046

    Payment & Shipping Terms:

    Minimum Order Quantity: 20 pieces for Standard package customer's demand
    Price: Negotiable
    Packaging Details: Standard package or to customer's demand
    Delivery Time: 30 working days
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 5000pcs per months
    Contact Now
    Detailed Product Description
    Materials: Tungsten Carbide Industry: Oil And Gas
    Application: Drilling Bits Type: Abrasion Resistance
    Packing: Plastic Cylinder Name: Abrasion Resistance Tungsten Carbide Drill Bits Nozzles For Hard Working Condition
    High Light:

    hexagon alloy nozzle

    ,

    tungsten carbide thread nozzle

    Abrasion Resistance Tungsten Carbide Drill Bits Nozzles For Hard Working Condition



    Tungsten carbide nozzle is mainly used in chemical industry, food, machinery, metallurgy, architecture and other industries for pulverizing, derusting, cleaning, atomization, etc. Aseeder tungsten carbide nozzles are mainly for Oil Drilling Tools.



    Features:

    Aseeder Cemented tungsten carbide spary nozzle of oil field drill bit parts have a variety of specifications, processed and made with high quality raw material. It has the characteristics of high temperature resistance, corrosion resistance, abrasion resistance, high precision and so on.



    Benefit

    • High efficiency for cooling, cleaning and cuttings evacuation, extend the drilling bit lift.

    • When tightening nozzle reduced pop-up force.



    Recommended tungsten carbide grade list

    Grade Co
    (Wt %)
    Density
    (g/cm3)
    Hardness (HRA) TRS
    (≥N/mm²)
    ZY11-C 9.0-11.0 14.33-14.53 88.6-90.2 2800
    ZY15-C 15.5-16.0 13.84-14.04 85.6-87.2 2800
    ZY15X 14.7-15.3 13.85-14.15 ≥89 3000
    ZY20 18.7-19.1 13.55-13.75 ≥83.8 2800
    ZY06X 5.5-6.5 14.80-15.05 91.5-93.5 2800
    ZY08 7.5-8.5 14.65-14.85 ≥89.5 2500
    ZY09 8.5-9.5 14.50-14.70 ≥89 2800
    ZY10X 9.5-10.5 14.30-14.60 90.5-92.5 3000



    Advantage::

    •  High stability, long lifespan circle.
    •  Customized as your requirements.
    •  Approved factory for oil and natural gas industry TOP10 customers.
    •  With ASP9100 certificate , API certificate, ISO9001:2015
    •  With a Special Thread Processing Workshop



    Package :

    Each unit will be packed into a plastic cylinder with foam, then put on carton box.






    Major Product Lines

    · Wear resistant carbide components via powder metallurgy technique

    · Hardfacing (oxy-acetylene spray, PTA, HVOF, etc.) and surface enhancement (phosphating, boronizing, etc.)

    · High-precision machining of metals (S.Steel, carbon steel, Inconel 718, etc.)

    · Additive manufacture



    The products and technologies from Seed (Aseeder) have been widely applied in the fields of oil & gas, chemical engineering, subsea, nuclear power and aerospace industries. Mainly used in harsh operating conditions include severe abrasion, erosion, corrosion, high temperature, high pressure and strong impact. Our major clients are Fortune 500 companies. Seed is the leading export enterprise in China of wear-resistant cemented carbide products and the related high-precision machining techniques.



    Abrasion Resistance Tungsten Carbide Thread Nozzle For Hard Working Condition



    Representative Products

    Chokes and valves trim parts
    Pumps seal rings
    Labyrinth product series
    Drill bit nozzles, inserts, cutters
    MWD parts, downhole tool components
    TC bearings, PDC thrust bearings
    Downhole flow control components
    Artificial lift pumps components
    Super hard product series
    Innovative hardfacing solutions
