| Place of Origin: | CHINA |
| Brand Name: | ASEEDER |
| Certification: | ISO,TDS,API, ASP9100 |
| Model Number: | AN-053 |
| Minimum Order Quantity: | 20 pieces for Standard package customer's demand |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard package or to customer's demand |
| Delivery Time: | 30 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 30000pcs per months |
| Materials: | Tungsten Carbide | Feature: | Corrosion Resistance |
|---|---|---|---|
| Application: | Drill Bit Nozzle | Type: | Anti-galling |
| Packing: | Plastic Cylinder With Foam | Name: | Seeder Drilling Tools Drill Bit Nozzle For For Anti-galling And Corrosion Resistance |
| High Light: | tungsten carbide thread nozzle,oil spray head thread nozzle |
||

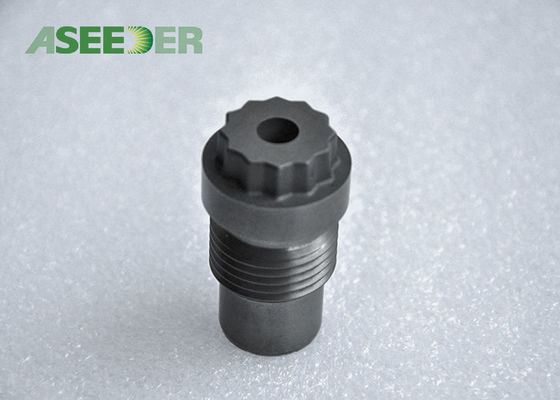

Aseeder Drilling Tools Drill Bit Nozzle For For Anti-Galling And Corrosion Resistance
Tungsten carbide nozzle is mainly used in chemical industry, food, machinery, metallurgy, architecture and other industries for pulverizing, derusting, cleaning, atomization, etc. Aseeder tungsten carbide nozzles are mainly for Oil Drilling Tools.
Features:
Aseeder Cemented tungsten carbide spary nozzle of oil field drill bit parts have a variety of specifications, processed and made with high quality raw material. It has the characteristics of high temperature resistance, corrosion resistance, abrasion resistance, high precision and so on.
Benefit
High efficiency for cooling, cleaning and cuttings evacuation, extend the drilling bit lift.
When tightening nozzle reduced pop-up force.
Recommended tungsten carbide grade list
| Grade | Co (Wt %) |
Density (g/cm3) |
Hardness (HRA) | TRS (≥N/mm²) |
| ZY11-C | 9.0-11.0 | 14.33-14.53 | 88.6-90.2 | 2800 |
| ZY15-C | 15.5-16.0 | 13.84-14.04 | 85.6-87.2 | 2800 |
| ZY15X | 14.7-15.3 | 13.85-14.15 | ≥89 | 3000 |
| ZY20 | 18.7-19.1 | 13.55-13.75 | ≥83.8 | 2800 |
| ZY06X | 5.5-6.5 | 14.80-15.05 | 91.5-93.5 | 2800 |
| ZY08 | 7.5-8.5 | 14.65-14.85 | ≥89.5 | 2500 |
| ZY09 | 8.5-9.5 | 14.50-14.70 | ≥89 | 2800 |
| ZY10X | 9.5-10.5 | 14.30-14.60 | 90.5-92.5 | 3000 |
Advantage::
Package :
Each unit will be packed into a plastic cylinder with foam, then put on carton box.
Major Product Lines
· Wear resistant carbide components via powder metallurgy technique
· Hardfacing (oxy-acetylene spray, PTA, HVOF, etc.) and surface enhancement (phosphating, boronizing, etc.)
· High-precision machining of metals (S.Steel, carbon steel, Inconel 718, etc.)
· Additive manufacture
The products and technologies from Seed (Aseeder) have been widely applied in the fields of oil & gas, chemical engineering, subsea, nuclear power and aerospace industries. Mainly used in harsh operating conditions include severe abrasion, erosion, corrosion, high temperature, high pressure and strong impact. Our major clients are Fortune 500 companies. Seed is the leading export enterprise in China of wear-resistant cemented carbide products and the related high-precision machining techniques.
Representative Products
Chokes and valves trim parts
Pumps seal rings
Labyrinth product series
Drill bit nozzles, inserts, cutters
MWD parts, downhole tool components
TC bearings, PDC thrust bearings
Downhole flow control components
Artificial lift pumps components
Super hard product series
Innovative hardfacing solutions
