| Place of Origin: | CHINA |
| Brand Name: | ASEEDER |
| Certification: | ISO,TDS,API, ASP9100 |
| Model Number: | PN-820 |
| Minimum Order Quantity: | 60 |
|---|---|
| Price: | TBA |
| Packaging Details: | Standard package or to customer's demand |
| Delivery Time: | 30~45 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 9000pcs per months |
| Materials: | Cemented Tungsten Carbide | Industry: | Oil & Gas |
|---|---|---|---|
| Coating: | WC | Keyword: | Carbide Plunger |
| Name: | OEM Longer Life Service Time Pump Plunger With Tungsten Carbide Coating | Advantage: | Wear Resistance |
| High Light: | ZY15X Cemented Tungsten Carbide Pump Plunger,OEM TC Coating Pump Plunger,ZY15X Tungsten Carbide Plunger |
||

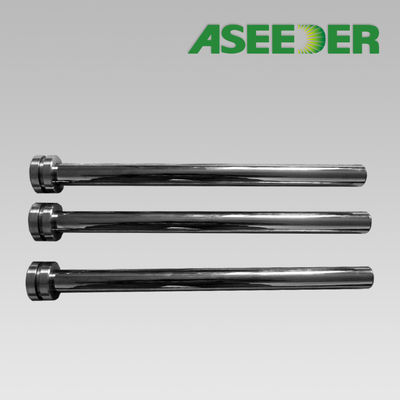

OEM Longer Life Service Time Pump Plunger with Tungsten Carbide Coating
SEED are able to manufacturing many types of corrosion resistance and wear resistance pump plunger / plunger piston / frac plunger based on customer's drawing and material requirement, support hardfacing process , since most of our products are customized and not suitable to show for other customer, welcome to contact us for OEM service.
Features:
Both tungsten carbide Plunger or steel plunger with TC coating are available, processed and made with good raw material. It has the characteristics of high temperature resistance, corrosion resistance, abrasion resistance, high precision and so on.
SEED recommended tungsten carbide grade list as below, please contact us for more options
| Grade | Co (Wt %) |
Density (g/cm3) |
Hardness (HRA) | TRS (≥N/mm²) |
| ZY11-C | 9.0-11.0 | 14.33-14.53 | 88.6-90.2 | 2800 |
| ZY15-C | 15.5-16.0 | 13.84-14.04 | 85.6-87.2 | 2800 |
| ZY15X | 14.7-15.3 | 13.85-14.15 | ≥89 | 3000 |
| ZY20 | 18.7-19.1 | 13.55-13.75 | ≥83.8 | 2800 |
| ZY06X | 5.5-6.5 | 14.80-15.05 | 91.5-93.5 | 2800 |
| ZY08 | 7.5-8.5 | 14.65-14.85 | ≥89.5 | 2500 |
| ZY09 | 8.5-9.5 | 14.50-14.70 | ≥89 | 2800 |
| ZY10X | 9.5-10.5 | 14.30-14.60 | 90.5-92.5 | 3000 |
Applications :
We are manufacturing the plunger based on customer's drawing and material requirement for difference industry application.
Advantage::
Package :
Each unit will be packed based on product shap to protect the goods well during transportation.
Major Product Lines

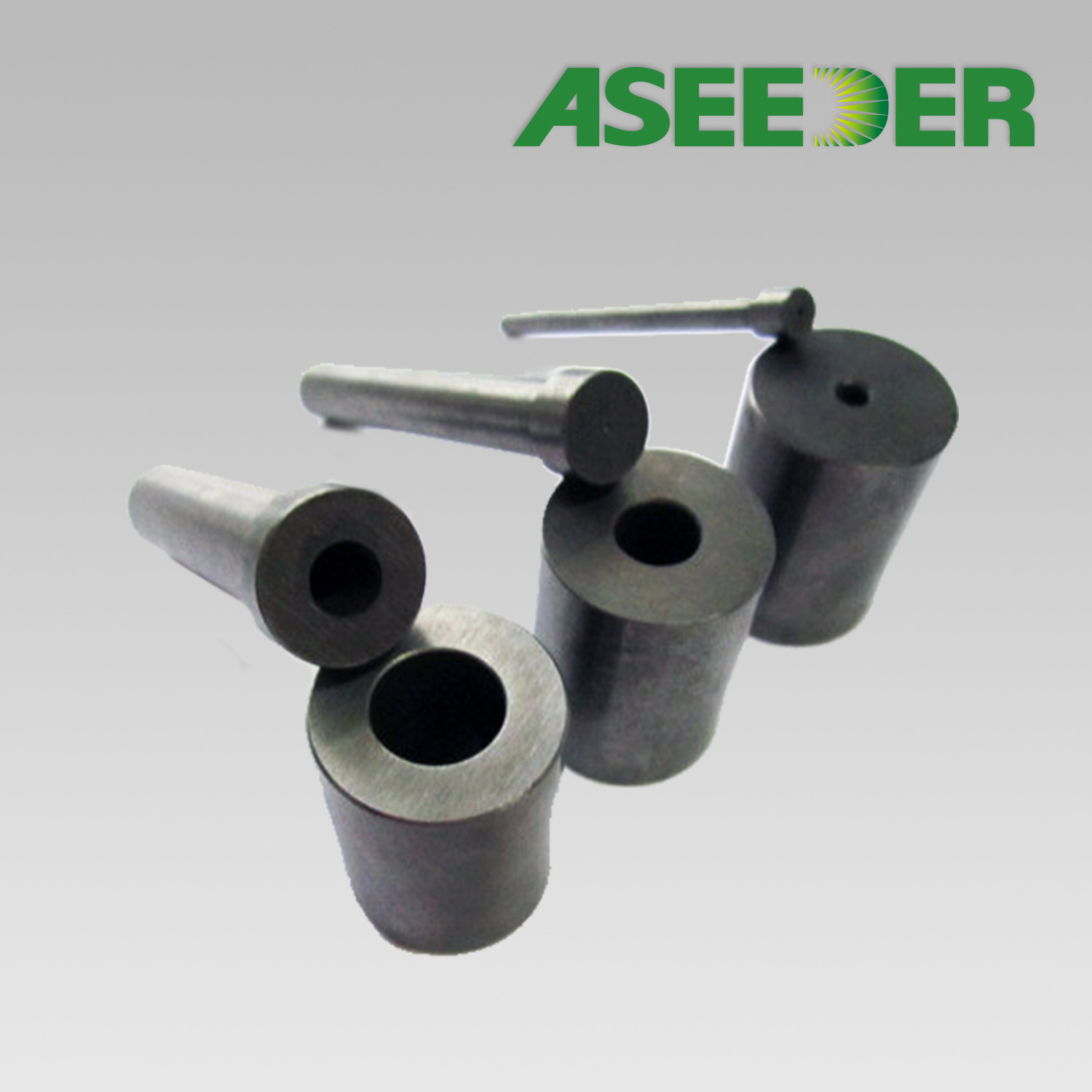

· Wear resistant carbide components via powder metallurgy technique
· Hardfacing (oxy-acetylene spray, PTA, HVOF, etc.) and surface enhancement (phosphating, boronizing, etc.)
· High-precision machining of metals (S.Steel, carbon steel, Inconel 718, etc.)
· Additive manufacture
The products and technologies from Seed (Aseeder) have been widely applied in the fields of oil & gas, chemical engineering, subsea, nuclear power and aerospace industries. Mainly used in harsh operating conditions include severe abrasion, erosion, corrosion, high temperature, high pressure and strong impact. Our major clients are Fortune 500 companies. Seed is the leading export enterprise in China of wear-resistant cemented carbide products and the related high-precision machining techniques.
Representative Products
Chokes and valves trim parts
Pumps seal rings
Labyrinth product series
Drill bit nozzles, inserts, cutters
MWD parts, downhole tool components
TC bearings, PDC thrust bearings
Downhole flow control components
Artificial lift pumps components
Super hard product series
Innovative hardfacing solutions
