Place of Origin: | CHINA |
Brand Name: | ASEEDER |
Certification: | ISO,TDS,API, ASP9100 |
Model Number: | PN-720 |
Minimum Order Quantity: | 100 |
---|---|
Price: | TBA |
Packaging Details: | Standard package or to customer's demand |
Delivery Time: | 30~45 working days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 12000pcs per months |
Materials: | WC | Characteristic: | Wear Resistance |
---|---|---|---|
Coating: | Optional | Keyword: | Plunger & Seat |
Name: | Ultra-High Pressure Compressor Rods And Plunger With Longer Service Life | OEM: | Support |
High Light: | WC Rod Plunger,ASP9100 Rod Plunger,ZY11-C Tungsten Carbide Plunger |

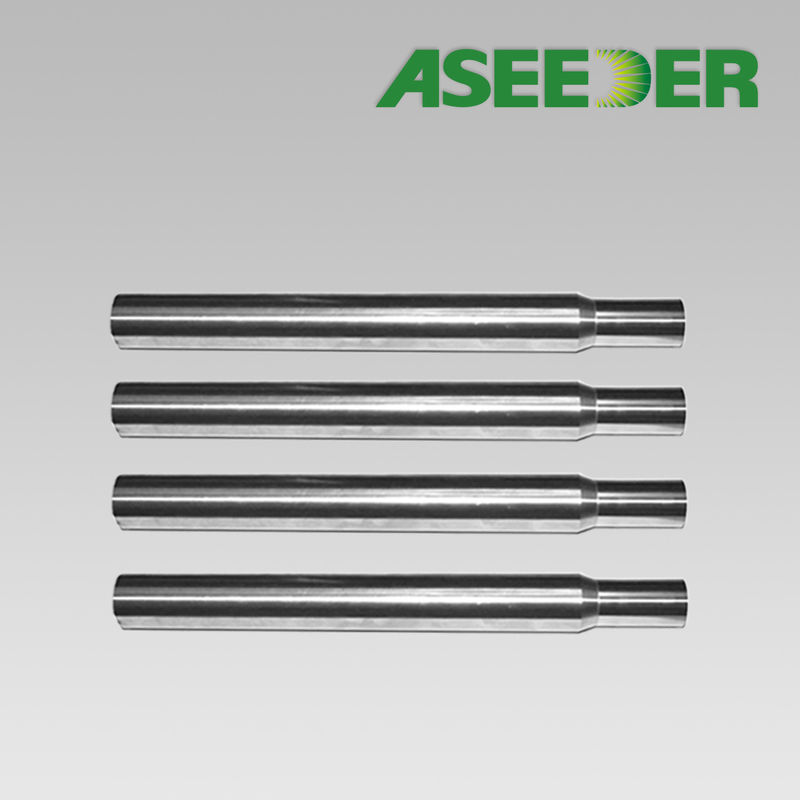

Ultra-High Pressure Compressor Rods and Plunger with Longer Service Life
SEED are able to manufacturing many types of corrosion resistance and wear resistance pump plunger / plunger piston / frac plunger based on customer's drawing and material requirement, support hardfacing process , since most of our products are customized and not suitable to show for other customer, welcome to contact us for OEM service.
Features:
Both tungsten carbide Plunger or steel plunger with TC coating are available, processed and made with good raw material. It has the characteristics of high temperature resistance, corrosion resistance, abrasion resistance, high precision and so on.
Applications :
We are manufacturing the plunger based on customer's drawing and material requirement for difference industry application.
SEED recommended tungsten carbide grade list as below, please contact us for more options
Grade | Co (Wt %) |
Density (g/cm3) |
Hardness (HRA) | TRS (≥N/mm²) |
ZY11-C | 9.0-11.0 | 14.33-14.53 | 88.6-90.2 | 2800 |
ZY15-C | 15.5-16.0 | 13.84-14.04 | 85.6-87.2 | 2800 |
ZY15X | 14.7-15.3 | 13.85-14.15 | ≥89 | 3000 |
ZY20 | 18.7-19.1 | 13.55-13.75 | ≥83.8 | 2800 |
ZY06X | 5.5-6.5 | 14.80-15.05 | 91.5-93.5 | 2800 |
ZY08 | 7.5-8.5 | 14.65-14.85 | ≥89.5 | 2500 |
ZY09 | 8.5-9.5 | 14.50-14.70 | ≥89 | 2800 |
ZY10X | 9.5-10.5 | 14.30-14.60 | 90.5-92.5 | 3000 |
Advantage::
Package :
Each unit will be packed based on product shap to protect the goods well during transportation.
Major Product Lines
· Wear resistant carbide components via powder metallurgy technique
· Hardfacing (oxy-acetylene spray, PTA, HVOF, etc.) and surface enhancement (phosphating, boronizing, etc.)
· High-precision machining of metals (S.Steel, carbon steel, Inconel 718, etc.)
· Additive manufacture
The products and technologies from Seed (Aseeder) have been widely applied in the fields of oil & gas, chemical engineering, subsea, nuclear power and aerospace industries. Mainly used in harsh operating conditions include severe abrasion, erosion, corrosion, high temperature, high pressure and strong impact. Our major clients are Fortune 500 companies. Seed is the leading export enterprise in China of wear-resistant cemented carbide products and the related high-precision machining techniques.
Representative Products
Chokes and valves trim parts
Pumps seal rings
Labyrinth product series
Drill bit nozzles, inserts, cutters
MWD parts, downhole tool components
TC bearings, PDC thrust bearings
Downhole flow control components
Artificial lift pumps components
Super hard product series
Innovative hardfacing solutions
