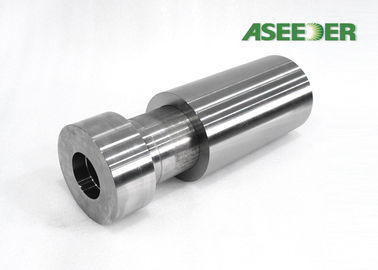

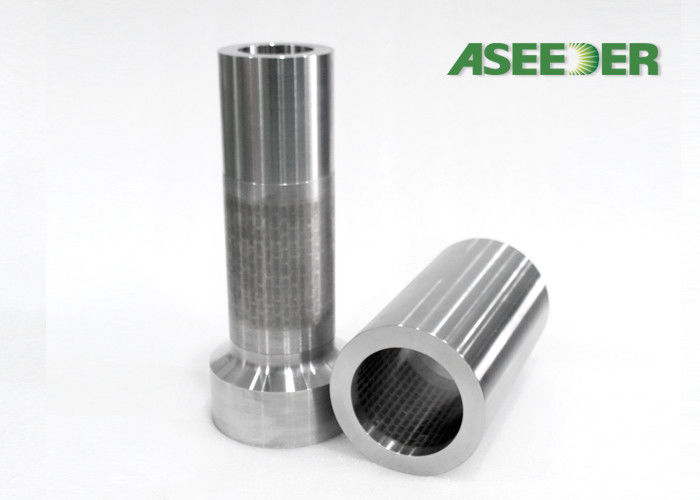

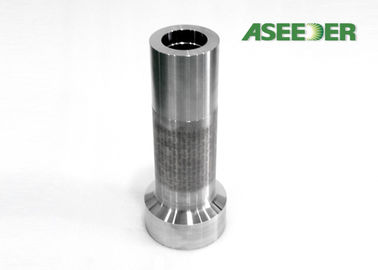

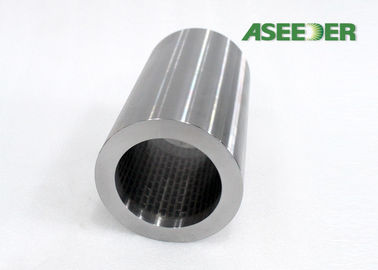

Tungsten Carbide Plain Shaft Bearing In Mud Lubricated Drilling Tools

Tungsten Carbide Plain Shaft Bearing In Mud Lubricated Drilling Tools

  • Tungsten Carbide Plain Shaft Bearing In Mud Lubricated Drilling Tools
  • Tungsten Carbide Plain Shaft Bearing In Mud Lubricated Drilling Tools
  • Tungsten Carbide Plain Shaft Bearing In Mud Lubricated Drilling Tools
  • Tungsten Carbide Plain Shaft Bearing In Mud Lubricated Drilling Tools
Tungsten Carbide Plain Shaft Bearing In Mud Lubricated Drilling Tools
Product Details:
Place of Origin: CHINA
Brand Name: ASEEDER
Certification: ISO9001,API,
Model Number: BEARING-03
Payment & Shipping Terms:
Minimum Order Quantity: 5 pieces
Price: Negotatioin
Packaging Details: Aseeder standard packing or as customer's demand
Delivery Time: 5-8 weeks depend on quantity
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 pcs per month
Contact Now
Detailed Product Description
Material: Tungsten Carbide Feature: Wear Resistance
Name: Various Size Tungsten Carbide Sliding Bearing Sleeve Type: Plain Shaft Bearing
Raw Materials: 100% Virgin Tungsten Carbide Size: According To Customer's Requirement
High Light:

pta radial bearing

,

pta tc bearing

Tungsten Carbide Plain Shaft Bearing In Mud Lubricated Drilling Tools

Tungsten Carbide Plain Shaft Bearing In Mud Lubricated Drilling Tools 0



Product details



Customized size Tungsten Carbide Plain Shaft Bearing



1. Tungsten Carbide Bearing Bushings have the characters of high wear resistance, high corrosion resistance and good compressive properties.



2. It's widely used in petrochemical industries and other industries which call for high properties of the bearing bushings or shaft sleeves.


3. Tungsten carbide BEARING is the basic material among the frictional materials. They are widely use as the basic components for sealing. And the bushings are widely adopted in petrochemical industry due to its excellent performances such as wear ability, anti corrosion


Tungsten Carbide Plain Shaft Bearing In Mud Lubricated Drilling Tools 1



Grades, Properties and Recommended Applications of Cemented Carbide
SEED Carbide have R&D Dept can help customer to develop new grade as per special application.

Grade Co
(Wt %)
Density
(g/cm3)
Hardness (HRA) TRS
(≥N/mm²)
ZY11-C 9.0-11.0 14.33-14.53 88.6-90.2 2800
ZY15-C 15.5-16.0 13.84-14.04 85.6-87.2 2800
ZY15X 14.7-15.3 13.85-14.15 ≥89 3000
ZY20 18.7-19.1 13.55-13.75 ≥83.8 2800
ZY06X 5.5-6.5 14.80-15.05 91.5-93.5 2800
ZY08 7.5-8.5 14.65-14.85 ≥89.5 2500
ZY09 8.5-9.5 14.50-14.70 ≥89 2800
ZY10X 9.5-10.5 14.30-14.60 90.5-92.5 3000



FACTORY INFORMATION:

Seed Technologies Corp., LTD., located in Zhuzhou (China), is a high-tech developer, manufacturer, and distributor of superior wear resistant parts, tool assembly and equipment for Oil and gas, Areospace, Valve and Pumps industry..
Aseeder Corporation was invested by Seed as a Houston based company dedicated for sales and customer support in north America market.



Major Product Lines

· Wear resistant carbide components via powder metallurgy technique

· Hardfacing (oxy-acetylene spray, PTA, HVOF, etc.) and surface enhancement (phosphating, boronizing, etc.)

· High-precision machining of metals (S.Steel, carbon steel, Inconel 718, etc.)

· Additive manufacture

Tungsten Carbide Plain Shaft Bearing In Mud Lubricated Drilling Tools 2

The products and technologies from Seed (Aseeder) have been widely applied in the fields of oil & gas, chemical engineering, subsea, nuclear power and aerospace industries. Mainly used in harsh operating conditions include severe abrasion, erosion, corrosion, high temperature, high pressure and strong impact. Our major clients are Fortune 500 companies. Seed is the leading export enterprise in China of wear-resistant cemented carbide products and the related high-precision machining techniques.



Representative Products

Chokes and valves trim parts
Pumps seal rings
Labyrinth product series
Drill bit nozzles, inserts, cutters
MWD parts, downhole tool components
TC bearings, PDC thrust bearings
Downhole flow control components
Artificial lift pumps components
Super hard product series
Innovative hardfacing solutions



Tungsten Carbide Plain Shaft Bearing In Mud Lubricated Drilling Tools 3
