| Place of Origin: | CHINA |
| Brand Name: | ASEEDER |
| Certification: | ISO9001,API, |
| Model Number: | BEARING-01226 |
| Minimum Order Quantity: | 5 pieces |
|---|---|
| Price: | Negotatioin |
| Packaging Details: | Aseeder standard packing or as customer's demand |
| Delivery Time: | 3-5 weeks depend on quantity |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 5000 pcs per month |
| Name: | High Corrosion Resistance Carbide Bushing Sleeve Bearing With Stable Chemical Properties | Keyword: | Carbide Bushing Sleeve Bearing |
|---|---|---|---|
| Material: | 100% Virgin Tungsten Carbide | Feature: | Wear Resistance,Corrosion Resistance |
| Application: | Oil Industry,pump Etc | Type: | Sleeve Bushing |
| Advantage:: | High Rigidity & Durable | Size: | According To Customer's Requirement |
| High Light: | insert sleeve bearing bushing,tungsten carbide sleeve bearing bushing |
||

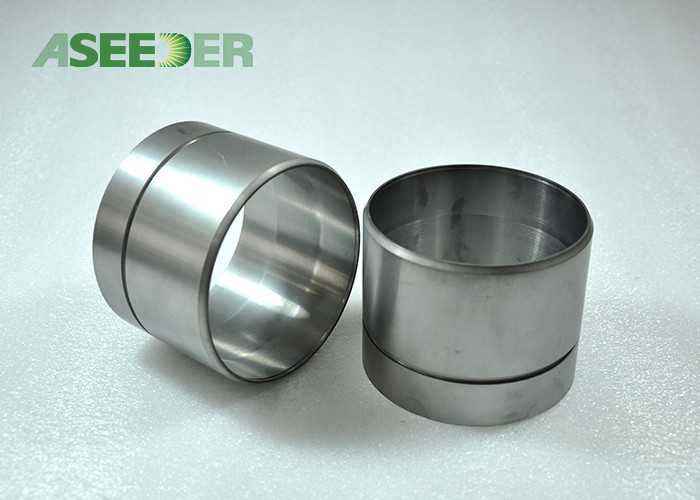

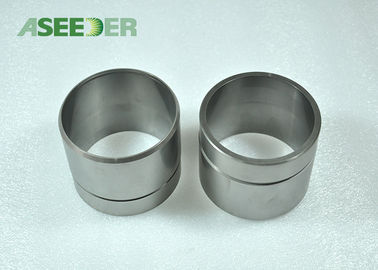

High Corrosion Resistance Carbide Bushing Sleeve Bearing With Stable Chemical Properties
1. Tungsten Carbide Bearing Bushings have the characters of high wear resistance, high corrosion resistance and good compressive properties.
2. It's widely used in petrochemical industries and other industries which call for high properties of the bearing bushings or shaft sleeves.
3. Tungsten carbide BEARING is the basic material among the frictional materials. They are widely use as the basic components for sealing. And the bushings are widely adopted in petrochemical industry due to its excellent performances such as wear ability, anti corrosion etc.
Grades, Properties and Recommended Applications of Cemented Carbide
ASEEDER Carbide have R&D Dept can help customer to develop new grade as per special application.
| Aseeder Grade | Co (Wt %) |
Density (g/cm3) |
Hardness (HRA) | TRS (≥N/mm²) |
| ZY11-C | 9.0-11.0 | 14.33-14.53 | 88.6-90.2 | 2800 |
| ZY15-C | 15.5-16.0 | 13.84-14.04 | 85.6-87.2 | 2800 |
| ZY15X | 14.7-15.3 | 13.85-14.15 | ≥89 | 3000 |
| ZY20 | 18.7-19.1 | 13.55-13.75 | ≥83.8 | 2800 |
| ZY06X | 5.5-6.5 | 14.80-15.05 | 91.5-93.5 | 2800 |
| ZY08 | 7.5-8.5 | 14.65-14.85 | ≥89.5 | 2500 |
| ZY09 | 8.5-9.5 | 14.50-14.70 | ≥89 | 2800 |
| ZY10X | 9.5-10.5 | 14.30-14.60 | 90.5-92.5 | 3000 |
Features:
1. Use 100% tungsten carbide raw material
2. Stable chemical properties
3. Excellent performance and good wear / corrosion resistance
4. HIP sintering, good compactness
5. Blanks, high machining accuracy / precision
6. OEM customized sizes available
7. Factory’s offer
8. Strict products quality inspection
Specialty precision machining Manufactory!
| Type | Welcome all inquiries, requirements and customized,OEM,ODM orders | ||
| Processing | According to your drawing or picture or samples | ||
| Material | Stainaless steel,iron,Aluminum,copper,CRS, | ||
| Tolerance | As drawing request | ||
| Surface treatment | Zn-plating,Ni-plating,Cr-plating,Black oxide,Sand blasting,anodzing, Hot-dip galvanizing, color zinc plating, powder coating, chemical oxidation, painting, electroplating, rust prevention | ||
| Logo | Laser carving or Oil injection (according to your logo file) | ||
| Samples | Acceptable. | ||
| Surface Roughness | As drawings | ||
| Usage | machinery, home appliances, electronic products, electric appliances,stationery,
computers, power switches , Medical Equipment etc.Oil and Gas indurstry
|
||
| Machining equipment | CNC machining center, grinding machine, milling machine, drilling machine,horizontal milling machine, chamfering machine, Metal Stamping ,CNC cutting machine etc. | ||
| Advantage | All the order can customize .Premium quality ,product with high precision. | ||
| Delivery | 5-10 days for samples .20-30 working days for mass productions. | ||
| Payment terms | T/T, PAYPAL, L/C,NET 70, | ||
| Port | Guangzhou,Tianjing,Shenzhen,Shanghai,CHINA |
||
