| Place of Origin: | CHINA |
| Brand Name: | ASEEDER |
| Certification: | ISO9001,API, |
| Model Number: | BEARING-01224 |
| Minimum Order Quantity: | 5 pieces |
|---|---|
| Price: | Negotatioin |
| Packaging Details: | Aseeder standard packing or as customer's demand |
| Delivery Time: | 3-5 weeks depend on quantity |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 5000 pcs per month |
| Name: | Carbide Thin Wall Sleeve Bushing | Feature: | Wear Resistance,Corrosion Resistance |
|---|---|---|---|
| Application: | Oil Industry,pump Etc | Type: | Sleeve Bushing |
| Custom: | Yes | Size: | According To Customer's Requirement |
| High Light: | insert sleeve bearing bushing,carbide sliding bearing sleeve |
||

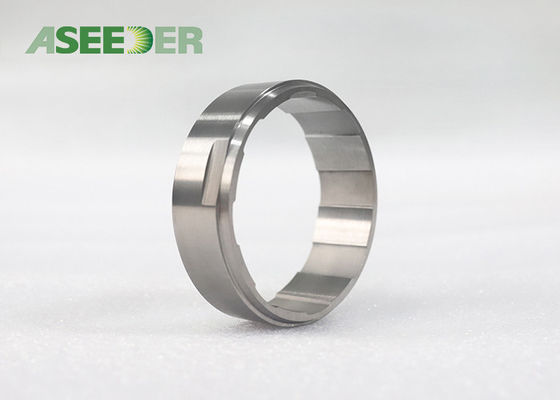

Custom Carbide Thin Wall Sleeve Bushing , Machining Tungsten Carbide Bearing
Carbide Thin Wall Sleeve Bushing Feature
1. 100% virgin raw materials.
2. Various kinds of grades are availalbe based on customer's application.
3. we have professional advanced production line and inspeciton equipments to ensure high quality products.
4. Precision Ground and high polishing process
Grades, Properties and Recommended Applications of Cemented Carbide
ASEEDER Carbide have R&D Dept can help customer to develop new grade as per special application.
| Aseeder Grade | Co (Wt %) |
Density (g/cm3) |
Hardness (HRA) | TRS (≥N/mm²) |
| ZY15-C | 15.5-16.0 | 13.84-14.04 | 85.6-87.2 | 2800 |
| ZY15X | 14.7-15.3 | 13.85-14.15 | ≥89 | 3000 |
| ZY20 | 18.7-19.1 | 13.55-13.75 | ≥83.8 | 2800 |
| ZY06X | 5.5-6.5 | 14.80-15.05 | 91.5-93.5 | 2800 |
| ZY08 | 7.5-8.5 | 14.65-14.85 | ≥89.5 | 2500 |
| ZY09 | 8.5-9.5 | 14.50-14.70 | ≥89 | 2800 |
| ZY10X | 9.5-10.5 | 14.30-14.60 | 90.5-92.5 | 3000 |
Carbide Thin Wall Sleeve Bushing Details
| Type | Welcome all inquiries, requirements and customized,OEM,ODM orders | ||
| Processing | According to your drawing or picture or samples | ||
| Material | Stainaless steel,iron,Aluminum,copper,CRS, | ||
| Tolerance | As drawing request | ||
| Surface treatment | Zn-plating,Ni-plating,Cr-plating,Black oxide,Sand blasting,anodzing, Hot-dip galvanizing, color zinc plating, powder coating, chemical oxidation, painting, electroplating, rust prevention | ||
| Logo | Laser carving or Oil injection (according to your logo file) | ||
| Samples | Acceptable. | ||
| Surface Roughness | As drawings | ||
| Usage | machinery, home appliances, electronic products, electric appliances,stationery,
computers, power switches , Medical Equipment etc.Oil and Gas indurstry
|
||
| Machining equipment | CNC machining center, grinding machine, milling machine, drilling machine,horizontal milling machine, chamfering machine, Metal Stamping ,CNC cutting machine etc. | ||
| Advantage | All the order can customize .Premium quality ,product with high precision. | ||
| Delivery | 5-10 days for samples .20-30 working days for mass productions. | ||
