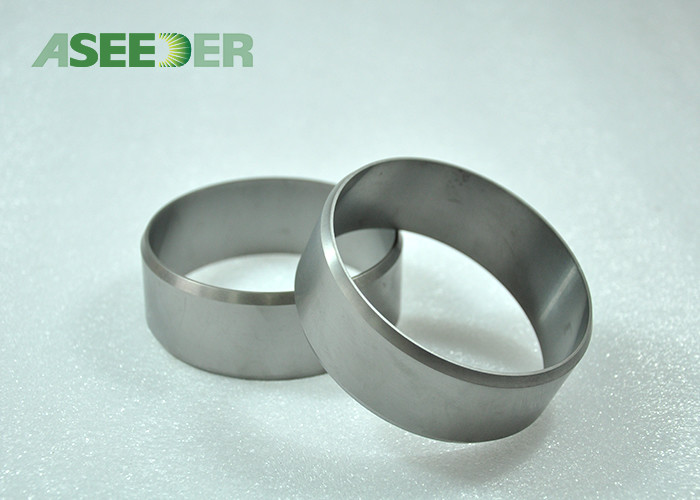

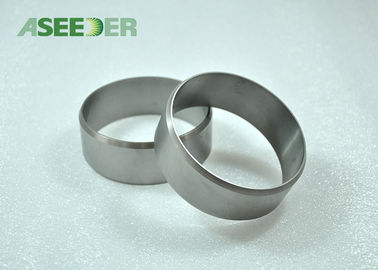

High Hardness Carbide Bushing Sleeve Bearing For Oil Industry / Pump

High Hardness Carbide Bushing Sleeve Bearing For Oil Industry / Pump

  • High Hardness Carbide Bushing Sleeve Bearing For Oil Industry / Pump
  • High Hardness Carbide Bushing Sleeve Bearing For Oil Industry / Pump
High Hardness Carbide Bushing Sleeve Bearing For Oil Industry / Pump
Product Details:
Place of Origin: CHINA
Brand Name: ASEEDER
Certification: ISO9001,API,
Model Number: BEARING-01226
Payment & Shipping Terms:
Minimum Order Quantity: 5 pieces
Price: Negotatioin
Packaging Details: Aseeder standard packing or as customer's demand
Delivery Time: 3-5 weeks depend on quantity
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000 pcs per month
Contact Now
Detailed Product Description
Name: Carbide Bushing Sleeve Bearing Keyword: Carbide Bushing Sleeve Bearing
Material: 100% Virgin Tungsten Carbide Feature: High Hardness
Application: Oil Industry,pump Etc Type: Sleeve Bushing
Advantage:: High Rigidity & Durable Size: According To Customer's Requirement
High Light:

insert sleeve bearing bushing

,

tungsten carbide sleeve bearing bushing

High Hardness Carbide Bushing Sleeve Bearing For Oil Industry / Pump



Carbide Bushing Sleeve Bearing Introduction



1. Tungsten Carbide Bearing Bushings have the characters of high wear resistance, high corrosion resistance and good compressive properties.



2. It's widely used in petrochemical industries and other industries which call for high properties of the bearing bushings or shaft sleeves.


3. Tungsten carbide BEARING is the basic material among the frictional materials. They are widely use as the basic components for sealing. And the bushings are widely adopted in petrochemical industry due to its excellent performances such as wear ability, anti corrosion etc.



Grades, Properties and Recommended Applications of Cemented Carbide


ASEEDER Carbide have R&D Dept can help customer to develop new grade as per special application.



Aseeder Grade Co
(Wt %)
Density
(g/cm3)
Hardness (HRA) TRS
(≥N/mm²)
ZY11-C 9.0-11.0 14.33-14.53 88.6-90.2 2800
ZY15-C 15.5-16.0 13.84-14.04 85.6-87.2 2800
ZY15X 14.7-15.3 13.85-14.15 ≥89 3000
ZY20 18.7-19.1 13.55-13.75 ≥83.8 2800
ZY06X 5.5-6.5 14.80-15.05 91.5-93.5 2800
ZY08 7.5-8.5 14.65-14.85 ≥89.5 2500
ZY09 8.5-9.5 14.50-14.70 ≥89 2800
ZY10X 9.5-10.5 14.30-14.60 90.5-92.5 3000



Carbide Bushing Sleeve Bearing Features:


1. Use 100% tungsten carbide raw material
2. Stable chemical properties
3. Excellent performance and good wear / corrosion resistance
4. HIP sintering, good compactness
5. Blanks, high machining accuracy / precision
6. OEM customized sizes available
7. Factory’s offer
8. Strict products quality inspection



Specialty precision machining Manufactory!



Carbide Bushing Sleeve Bearing Details


High Hardness Carbide Bushing Sleeve Bearing For Oil Industry / Pump 0



Type Welcome all inquiries, requirements and customized,OEM,ODM orders
Processing According to your drawing or picture or samples
Material Stainaless steel,iron,Aluminum,copper,CRS,
Tolerance As drawing request
Surface treatment Zn-plating,Ni-plating,Cr-plating,Black oxide,Sand blasting,anodzing, Hot-dip galvanizing, color zinc plating, powder coating, chemical oxidation, painting, electroplating, rust prevention
Logo Laser carving or Oil injection (according to your logo file)
Samples Acceptable.
Surface Roughness As drawings
Usage machinery, home appliances, electronic products, electric appliances,stationery,
computers, power switches , Medical Equipment etc.Oil and Gas indurstry
Machining equipment CNC machining center, grinding machine, milling machine, drilling machine,horizontal milling machine, chamfering machine, Metal Stamping ,CNC cutting machine etc.
Advantage All the order can customize .Premium quality ,product with high precision.
Delivery 5-10 days for samples .20-30 working days for mass productions.
Payment terms T/T, PAYPAL, L/C,NET 70,
Port Guangzhou,Tianjing,Shenzhen,Shanghai,CHINA
